Electrostatic Spraying Portable Vehicle Barricades
The Mobile Vehicle Barrier System (Light) is welded by aluminum alloy, which is suitable for construction sections and municipal road maintenance sections where vehicles are traveling at low speed.
The yellow appearance of TMA is particularly conspicuous. Setting it on the periphery of the construction site can give drivers a good warning, and it can also stop driving vehicles rushing into the construction site in time to ensure the safety of personnel.

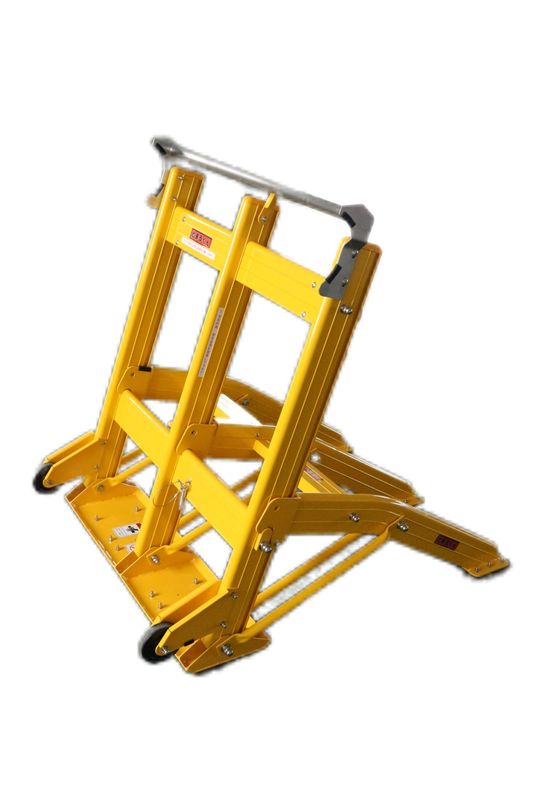

The design structure of the product is optimized and foldable. It weighs 25 kg and is equipped with two rubber wheels on both sides of the bottom for easy movement and deployment. One person can complete installation, disassembly and storage.
Specifications
| Product Name | Portable Foldable Vehicle Barrier |
| Material | High-strength aluminum alloy + wear-resistant rubber + rubber buffer components |
| Color | Yellow / Engineering Yellow (high-visibility warning color) |
| Weight | 25 kg |
| Dimensions | W320mm × L1070mm × H860mm |
| Folded Dimensions | Approx. W320mm × L600mm × H200mm |
| Structural Features | Foldable + wheels at base + rubber cushion pad |
| Manufacturing Process | Bending + welding |
Feature Description
1. Rubber Buffer Pad
High-elasticity rubber buffer blocks are installed inside or on the impact surface of the device. When a vehicle strikes, the rubber blocks undergo elastic deformation, absorbing a large amount of impact energy, effectively reducing instantaneous impact force and minimizing injury to both vehicle occupants and personnel.
2. Wear-Resistant Rubber Bottom Pad
A specially designed wear-resistant rubber pad is placed at the base where it contacts the ground. The high friction coefficient between the rubber and the ground provides strong friction during braking, helping the vehicle stop smoothly. The rubber material is wear-resistant and durable for long-term use.
3. Foldable Design
No tools required - just fold and store. When folded, the volume is reduced by approximately 70%. Many units can fit in one small truck, and they take up little space in the warehouse. When needed, simply unfold and use.
4. Welding Process
Key load-bearing parts are joined using welding, creating a very strong overall structure. The device does not easily loosen or deform over time, standing up to frequent handling and impacts on construction sites.
5. Bending Process
The main frame is formed through bending, reducing the number of weld points. The appearance is neat with smooth lines, while maintaining structural strength. The combination of bending and welding achieves both aesthetics and durability.
6. Lightweight Design
The entire unit weighs only 25 kilograms - just the right weight. Unlike concrete barriers that require machinery to move, or traffic cones that are too light and easily blown over, this unit can be easily operated by one person.
7. Mobile Wheels
The wheels are installed on each side of the base. One person can simply push and go. Need to adjust the position on site? Just push it. No lifting, no carrying.
8. Electrostatic Spraying Surface
Outdoor-grade electrostatic spraying makes the surface rust-proof, corrosion-resistant, and UV-resistant. It withstands wind, sun, and rain without fading. The color stays bright and visible for years.
Product Advantages Summary
Compared to traffic cones:
Traffic cones only warn - they are knocked away on impact. This product not only warns but actually stops vehicles, with rubber cushioning to reduce injury.
Compared to concrete barriers:
Concrete barriers can stop vehicles, but they cannot be moved easily, and impacts are rigid. This product weighs only 25kg, has wheels, is foldable, and can be handled by one person - with rubber cushioning as well.
Compared to standard metal fences:
Metal fences have some interception capability but no cushioning, resulting in high injury risk on impact. This product has rubber buffer pads and a wear-resistant bottom pad - it both stops vehicles and absorbs shock.
Layout Example
This product has been tested at the Japan Automobile Research Institute. The results of the test are as follows:
- When the vehicle hits the mobile vehicle guardrail system (light) at a speed of 40KM/H, it is forced to stop after sliding 3.6m
- When hitting the device at a speed of 60KM/H, it was forced to stop after sliding 8.7m
Remarks: Both tests are completed without braking
Q&A
Q: What's good about electrostatic spraying vehicle barriers?
A: No peeling, no rusting, no fading from sun exposure. The color stays bright for years outdoors - much more durable than regular paint.
Q: Is a 25kg parking barrier heavy enough?
A: Yes. 25kg is the sweet spot - not so light that it gets knocked away, not so heavy that you can't move it. One person can handle it.
Q: Does "automatic parking barrier" mean it works by itself?
A: Not electric automatic. It means when a vehicle hits it, the barrier automatically lifts the front wheel and applies cushioned braking - no manual operation needed.
Q: Is the quality of Chinese-made barriers good?
A: Yes. Professional factories with strict quality control. Mature electrostatic spraying technology. Many countries are buying them.
Q: What should I look for when buying?
A: Check if the coating is even, if the wheels roll smoothly, if the folding mechanism works easily, and if the weight is accurate.
