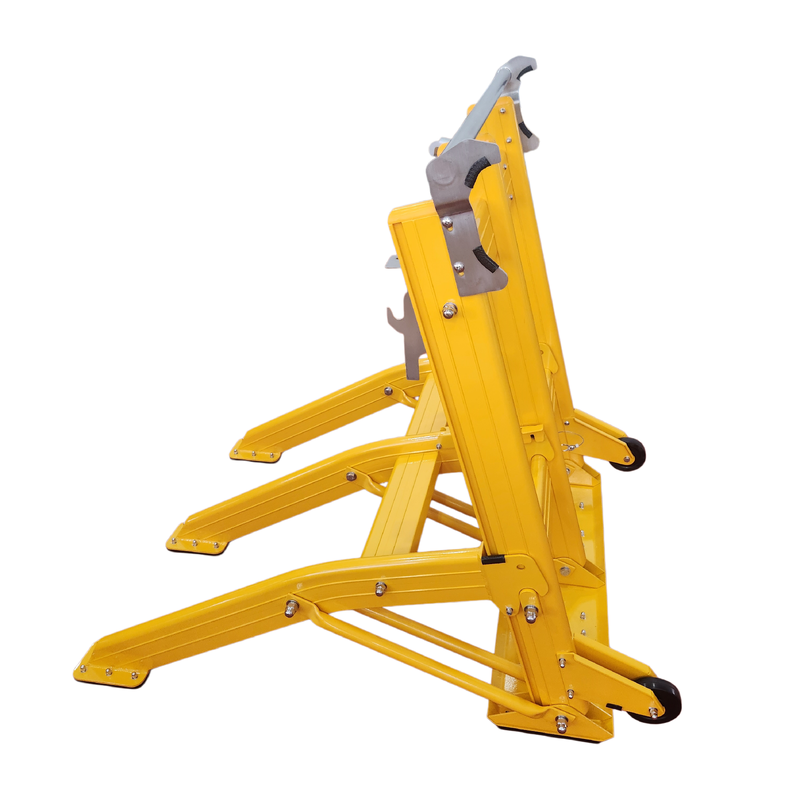

25kg Lightweight Foldable Anti Ram Vehicle Barrier with High-Visibility Engineering Yellow for Traffic Safety

25kg Lightweight Foldable Anti Ram Vehicle Barrier with High-Visibility Engineering Yellow for Traffic Safety

Rubber Plate Anti Ram Vehicle Barriers

20Kg Anti Ram Vehicle Barriers

Folding Anti Ram Vehicle Barriers

Place of Origin:

CHINA

Brand Name:

RMHs

Certification:

Iso9001

Model Number:

TOMARUKUN

Contact Us

Request A Quote
Product Details
Folding Size:
L1100*W664*H200
Unfold Size:
L1040*W664*H894
Weight:
20Kg
Material:
Aluminum+rubber Plate
Operating Dimensions:
W830 × L860 × H1080mm
Folded Dimensions:
W830 × L1090 × H365mm
Stopping Distance:
Approx. 8.7m At 60km/h
Temperature Range:
-20°C To 60°C
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
USD 2700/unit
Packaging Details
Packed in cartons, 208 units per 40' container
Delivery Time
30
Payment Terms
L/C,T/T
Supply Ability
300 units per month
Product Description
Tomarukun Anti-Ram Vehicle Barrier
Product Overview

Tomarukun is a lightweight vehicle interception device designed for low-speed scenarios such as municipal construction and road maintenance. Weighing only 25kg and made of high-strength aluminum alloy, it features a foldable design with bottom wheels, allowing one person to handle deployment and storage with ease.

Its high-visibility engineering yellow provides long-distance warning; upon vehicle impact, it lifts the front wheels through lever principle and brakes via the bottom rubber pad friction, achieving a stopping distance of only 8.7 meters at 60km/h. An optional LED indicator board is available for nighttime and low-visibility conditions, effectively ensuring the safety of construction personnel and passing vehicles.

Tomarukun vehicle barrier deployed on road
Technical Specifications
Product Name Tomarukun Stopping Device
Brand RMHs
Weight 25kg
Main Materials High-strength aluminum alloy + wear-resistant rubber
Surface Finish Outdoor-grade electrostatic spraying (rust-proof and weather-resistant)
Color Engineering Yellow / Orange-Yellow (high-visibility warning color)
Operating Dimensions W830 * L860 * H1080mm
Folded Dimensions W830 * L1090 * H365mm
Structural Features Foldable design + bottom wheels
Optional Accessories LED light guide plate / LED arrow indicator board
Tomarukun specifications diagram
Additional Specifications
Item Specification
Bottom Friction Component Specially designed rubber pad
Applicable Scenarios Municipal construction, road maintenance, temporary work zones
Operators Required 1 person
Deployment Method Push to work area -> unlock buckle -> rubber pad contacts ground
Tomarukun deployment illustration
8 Key Features
  1. Warning and Interception Integrated: Combines high-visibility engineering yellow warning with physical interception braking in one device - completing both alert and stop functions from a single unit.
  2. Purely Mechanical Braking: Designed on lever principle with a purely mechanical structure - no external power supply or electronic control required. Automatically triggers upon impact with no risk of circuit failure.
  3. Lightweight and Portable: Weighs only 25kg with built-in wheels - one person can handle pushing, deployment, and storage from start to finish.
  4. Foldable Storage: Height reduces from 1080mm when deployed to 365mm when folded - volume reduced by nearly two-thirds for convenient transport and storage.
  5. All-Weather Durability: Surface treated with outdoor-grade electrostatic spraying - rust-proof, corrosion-resistant, and UV-resistant. Adapts to temperatures from -20°C to 60°C.
  6. Modular Expandability: Main body features reserved mounting interfaces - optional LED active light indicator board can be added, plug-and-play for flexible expansion.
  7. Safe and Eco-Friendly: Aluminum alloy is impact-resistant, non-combustible, and produces no sparks upon impact - eliminating secondary fire risks. Material is 100% recyclable.
  8. Cost-Effective and Efficient: Single person deploys in 1 minute - no mechanical assistance required. Low logistics and storage costs, with controllable total lifecycle operating costs.
Tomarukun key features diagram Tomarukun in use on road Tomarukun folded for storage
Stopping Principle

Pure mechanical structure, no external power supply required. When a vehicle strikes the front support arm, the lever principle lifts the front wheels, redirecting horizontal forward kinetic energy vertically into the ground, significantly reducing impact force. The remaining energy is transferred to the bottom rubber pad and converted into thermal energy through high-strength ground friction, achieving smooth braking.

Tomarukun stopping principle diagram
Braking Performance Test
Set Speed Stopping Distance Test Conditions
40km/h Approx. 3.0m Dry asphalt road, brakes applied after collision
60km/h Approx. 8.7m Dry asphalt road, brakes applied after collision

Test Conditions: Dry asphalt road, brakes applied after collision; Test Vehicle: 2000cc-class rear-wheel drive sedan

Tomarukun braking performance test results
Instructions for Use

Deployment:
Push to designated position -> Face oncoming traffic -> Unlock buckle and lower support arm -> Rubber pad contacts ground (not suspended) -> Install LED board (optional)

Storage after use:
Remove LED board (if installed) -> Lift support arm -> Fasten lock buckle -> Push back to storage location

Usage notes:
  • Device front must face oncoming traffic
  • Bottom rubber pad must fully contact the ground - not suspended
  • LED indicator board is recommended at night or in foggy conditions
  • Personnel must not stand directly behind the device
  • After a collision, inspect the structure to ensure integrity
Tomarukun deployment instructions Tomarukun storage instructions Tomarukun safety precautions
Application Scenarios
  • Perimeter protection for municipal road construction
  • Routine maintenance on highways and national roads
  • Temporary road-occupying operations such as power repairs and communication construction
  • Lane closures, road diversions, and split-flow guidance
  • Temporary control at parking lot entrances and exits
Product Q&A
Q: What specific scenarios is Tomarukun suitable for?
A: Municipal road construction, highway maintenance, tunnel construction, power repairs, landscaping and pruning, temporary parking lot control, traffic guidance during school drop-off/pick-up periods, port and dock vehicle accessways, and other low-speed operation scenarios.
Q: Can the product be placed stably on tunnel road surfaces?
A: Yes. Tunnel road surfaces are level and suitable for deployment. However, lighting is dim, so it is recommended to install the LED indicator board to ensure warning effectiveness.
Q: Can it be used in rain or snow?
A: Rain still allows braking, but stopping distance will increase accordingly - reduce speed expectations or combine with other protective measures. Braking distance increases significantly on icy surfaces - standalone use is not recommended; sanding, anti-slip mats, or other friction-enhancing measures and increased protective distance are required.
Q: Can it be used when roads are icy in winter?
A: Braking distance increases significantly on icy roads - standalone use is not recommended. If use is necessary, sanding, anti-slip mats, or other friction-enhancing measures must be applied, with increased protective distance.
Q: Can the product be used in ports and docks?
A: Yes. It can be used in port vehicle accessways, loading areas, and other locations. In salt spray environments, the electrostatic coating provides sufficient corrosion resistance - it is recommended to regularly wash off salt residue from the surface.
Q: What are the surface requirements for deployment?
A: Suitable for dry, level asphalt or concrete surfaces. Potholes, bumps, or cracks will affect rubber pad contact and reduce braking effectiveness.
Q: How long does the rubber pad last?
A: Depends on usage frequency and road surface roughness. Rough asphalt causes faster wear; smooth concrete causes slower wear. Inspect every 6-12 months under normal use - replace when worn to the wear line.
Q: Can the device be blown over by wind?
A: Weighing 25kg and forming a stable triangular structure when deployed, it is not easily tipped over in normal winds. In extreme weather (such as typhoons), additional counterweights or anchoring are recommended.
Q: Do the wheels need regular maintenance?
A: The wheels are maintenance-free by design. Check rotational smoothness monthly. If jamming occurs, clean debris from the axle or apply moderate lubricating oil.
Q: Is the folding lock buckle prone to damage?
A: The lock buckle is made of metal with spring-loaded positioning, rated for thousands of open-close cycles under normal use. Avoid rough handling and regularly check that the spring returns properly.
Q: What is the difference between standalone and combined use?
A: Small work points with limited space can use a single unit standalone, providing both warning and interception functions. For wider work surfaces, combine with cones to form multi-level protection - cones for early warning, Tomarukun for interception.
Q: How are cones used together with the device on site?
A: Place cones approximately 20 meters ahead of Tomarukun as early warning; additional cones can be placed on both sides of the device to narrow the effective vehicle approach width. Cones are low-cost and significantly improve protection.
Q: How is the device transported and stored?
A: Compact when folded - can be placed directly in a pickup truck or utility vehicle for transport. Store in a dry, ventilated place, avoiding prolonged direct sunlight to prevent accelerated rubber aging.
Q: How is the product recycled when retired?
A: The aluminum main body can be disassembled and sent to metal recycling facilities; the rubber pad is processed as rubber waste. The product design considers disassembly convenience, allowing most materials to be sorted and recycled.
