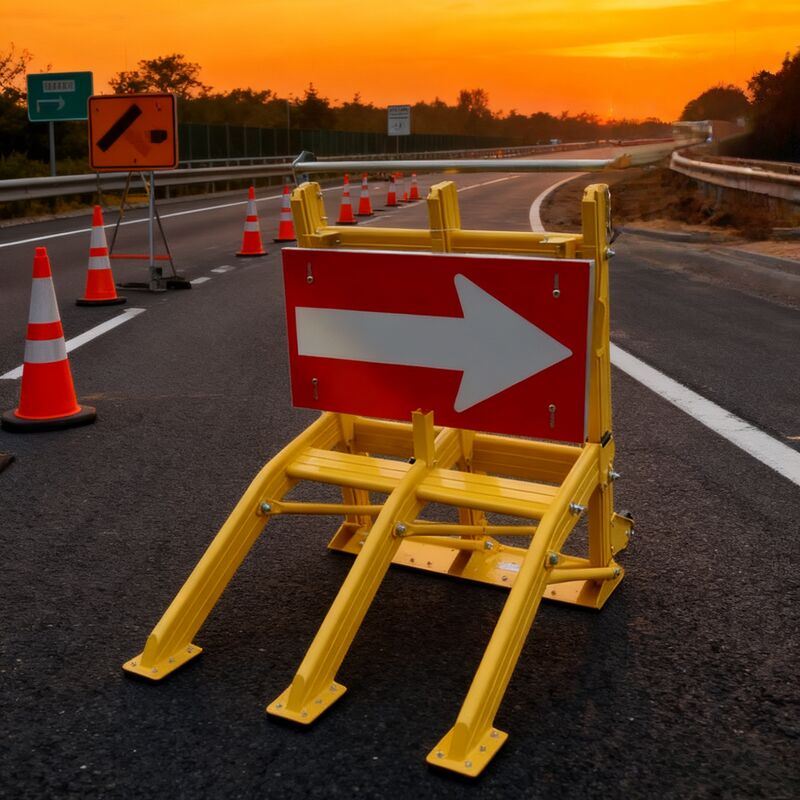

320×1070×860mm Tomarukun Anti-Ram Vehicle Barriers
Mobile Vehicle Barrier (Light) barricades designed to intercept vehicles, function as speed bumps, and provide road isolation for construction and municipal maintenance applications.
The Mobile Vehicle Barrier System (Light) is ideally suited for construction sites and municipal road maintenance where vehicles operate at low speeds. Constructed from eco-friendly, recyclable aluminum alloy, this non-flammable material reduces secondary combustion risks from sparks and protects driver and worker safety.
Weighing approximately 25kg, the barrier features sliding wheels on both sides for easy mobility. One person can complete installation, disassembly, and storage operations efficiently.
Product Specifications
| Product Name |
Portable Vehicle Stopper |
| Brand |
RMHs |
| Dimensions |
W320mm × L1070mm × H860mm |
| Weight |
25 kg |
| Main Materials |
High-strength aluminum, Wear-resistant rubber |
| Surface Finish |
Outdoor-grade electrostatic coating (rust and weather resistant) |
| Color |
Engineering Yellow / Orange (High-visibility warning color) |
| Structural Features |
Foldable + Transport Wheels |
| Manufacturing Process |
Welding + Bending |
Usage Scenarios
This product is specifically designed for low-speed environments and is suitable for the following applications:
- Municipal Road Construction Isolation - Demarcates construction zones from traffic lanes, preventing accidental vehicle entry
- Temporary Work Zone Warning & Protection - Ideal for emergency road repairs, greening maintenance, or manhole cover repairs with rapid deployment capabilities
- Traffic Flow Guidance - Positions at lane reductions, intersection diversions, or toll booth guidance points for orderly vehicle direction
- Temporary Control for Special Events - Suitable for marathon events, large gatherings, or temporary traffic management around school zones
Application Tip: An optional suspended LED light guide plate can be added to enhance visibility and warning effectiveness during nighttime, in tunnels, or in low-visibility conditions.
Layout Example
Recommended separation distances: 3 meters for urban roads, 5 meters for high-speed roads.
This product has been tested and certified by the Japanese Vehicle Research Institute. Actual vehicle collision data:
| Test Speed |
Stopping Distance |
| 40 KM/H |
3.6 M |
| 60 KM/H |
9.9 M |
Test Premise: Test vehicle: 2000cc class passenger car (rear-wheel drive). Road conditions: flat and dry. Assumes brakes are applied during impact.
Core Advantages
| ✅ Energy-Absorbing Braking |
Lifts wheels upon impact + friction braking; channels kinetic energy into the ground rather than rigid blocking |
| ✅ Lightweight & Portable |
Weighs only 25kg with universal wheels; easily moved by one person |
| ✅ Foldable Storage |
Foldable design minimizes storage space, saving costs on transport and warehousing |
| ✅ High Visibility |
Engineering yellow color + optional LED light guide plate; visible day and night for 24/7 protection |
| ✅ Durable & Sturdy |
High-strength aluminum + outdoor electrostatic coating; rust-proof, weather-resistant, and long-lasting |
| ✅ Rapid Deployment |
Ready to use on site; no need for water filling, inflation, or complex installation; boosts efficiency |
| ✅ One-Person Operation |
From moving to setup, no assistance required; reduces labor costs |
| ✅ Eco-Friendly |
Recyclable aluminum material aligns with modern green construction principles |
Purchasing Guide: 3 Steps to Choose the Right Product
| Step |
Considerations |
Recommendation |
| ① Identify Needs |
Where will it mainly be used? |
Municipal roads/Construction sites/Temporary control → Suitable |
|
Is nighttime warning required? |
Recommend adding the optional LED light guide plate |
| ② Check Specifications |
Is installation space limited? |
Foldable design minimizes storage footprint |
|
Is on-site transfer convenient? |
25kg + wheels; one person can push it |
| ③ Confirm Configuration |
Basic or upgraded version? |
Basic (unit only) / Upgraded (includes LED accessory) |
Q&A
Q1: Can it really stop a vehicle?
A1: Yes. It lifts the wheel + uses friction braking to bring the vehicle to a controlled stop—no rigid collision.
Q2: Is 25kg heavy? Is it easy to move?
A2: It has wheels at the base. No lifting required; just push it. Easily managed by one person.
Q3: Where do I store it when not in use? Does it take up space?
A3: It is foldable. When folded, its small size allows it to fit in a vehicle trunk or a warehouse corner.
Q4: Is it visible at night?
A4: The unit itself is a vivid engineering yellow, and an optional LED light guide plate can be added for clear nighttime visibility.
Q5: Is it durable? Will it rust?
A5: Made of aluminum with an outdoor-grade coating; rust-proof and weather-resistant, suitable for long-term outdoor use.
Q6: Is it damaged after one impact?
A6: No. Its energy-absorbing design allows it to be reset and reused after an impact, resulting in low maintenance costs.
