Aluminum Detachable 25KG Anti Ram Vehicle Barriers
Movable and Portable Vehicle Crash Barrier

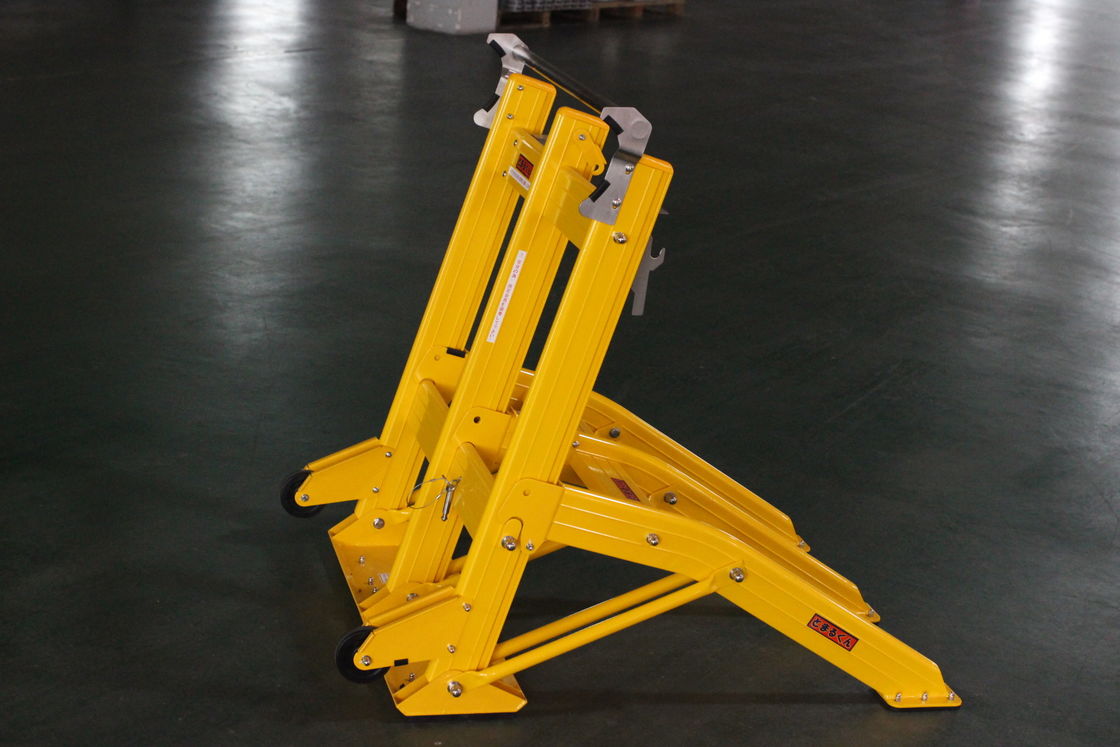

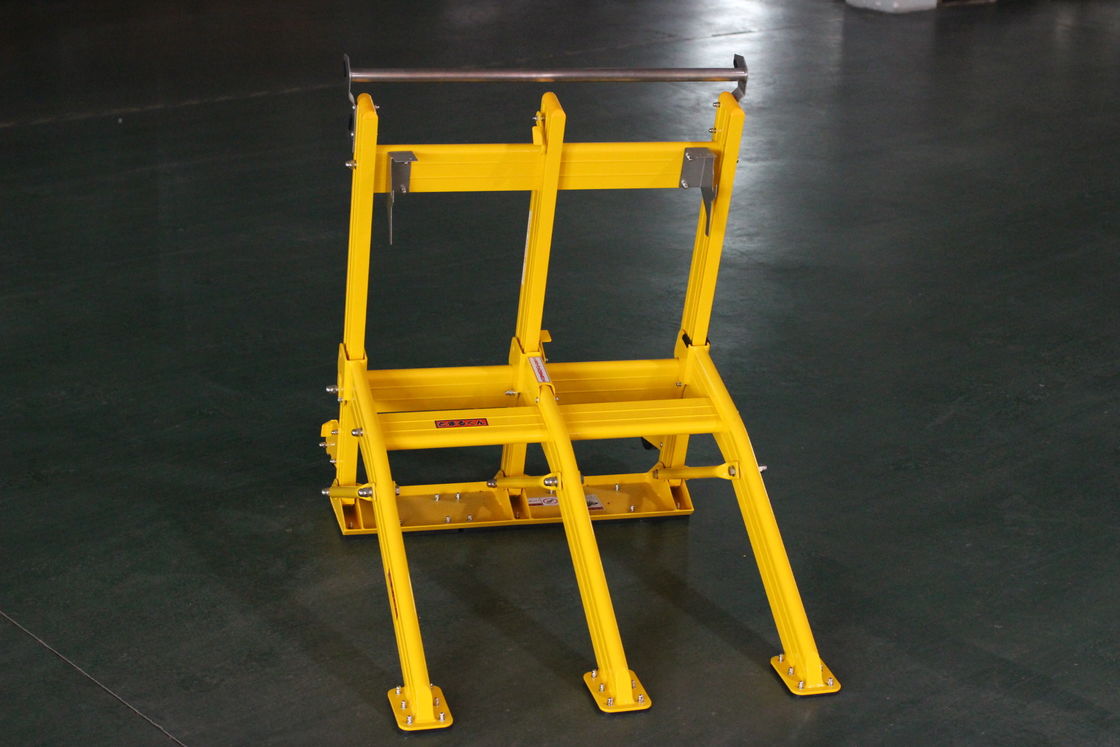

This innovative vehicle crash barrier effectively stops moving vehicles while offering exceptional portability and ease of use.
Constructed from hollow aluminum profiles, this barrier features three 10mm thick rubber pads at the base, each containing a 2.3mm iron plate to maximize ground friction. Weighing only 25kg, it can be easily moved by a single worker. Two 10cm diameter rubber wheels provide convenient mobility.
Product Specifications
| Item |
Specification |
| Product Name |
Small Parking Device (Mobile Anti-Crash Barrier) |
| Brand |
RMHs |
| Model |
RMHs-B01 (Example) |
| Net Weight |
25 kg |
| Dimensions (W * L * H) |
320 mm * 1070 mm * 860 mm |
| Main Material |
High-strength aluminum (Energy-absorbing, Eco-friendly) |
| Auxiliary Material |
Wear-resistant rubber (Bottom friction pad) |
| Surface Finish |
Outdoor-grade electrostatic spraying |
| Product Color |
Engineering Yellow / Orange (High-visibility warning color) |
| Structural Features |
Foldable Design; Mobile Wheels |
| Manufacturing Process |
Welding + Bending |
| Braking Principle |
Lever wheel lift + Friction braking |
| Buffer System |
Dual buffer shock-absorption modules |
| Application Scenarios |
Municipal road construction isolation, temporary work zone warning protection, traffic flow guidance |
| Optional Accessories |
Suspended LED light guide plate |

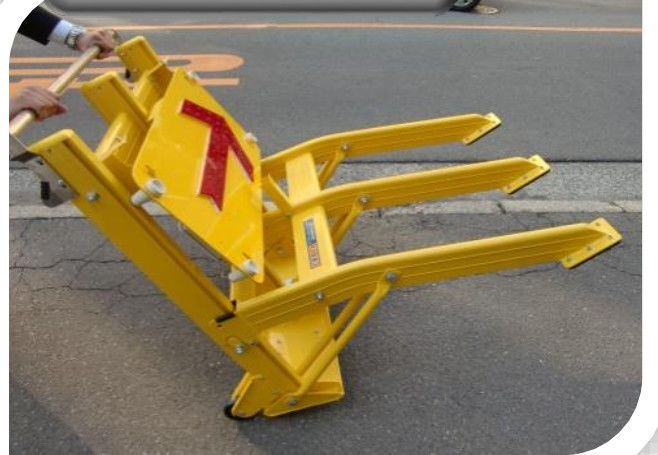

A person can move it alone, which is very convenient.
Superior Design Advantages
Unlike traditional road barriers that require ground fixing (time-consuming and damaging to roads), iron barriers (heavy and prone to rust), or plastic barriers (fragile and environmentally unfriendly), our aluminum barrier offers the perfect solution.
Traditional construction zones typically use only safety cones and signage, lacking physical interception capability. This creates dangerous situations where errant vehicles can enter restricted zones without being stopped.
Traditional Road Setting Limitations
Lack of buffer stop equipment is very dangerous for construction personnel.
The plastic anti-collision bucket material is fragile and has little resistance, which cannot effectively stop the vehicle from moving forward.
Our Advanced Solution
Our portable vehicle crash barrier is made of recyclable aluminum. If serious damage occurs from impact, the material can be sold or recycled, significantly reducing long-term costs. Weighing only 25kg per unit with integrated wheels, it can be easily moved by one person.
Our products have been widely used and recognized in Japan. The example in the picture shows road maintenance in Nagoya city, Japan. Typically used in sets of two, deployment can be customized according to specific road conditions.
This product requires no ground installation - simply place it in construction zones or other required locations as needed. It can be moved anytime, anywhere without wasting working hours, significantly reducing staff workload.

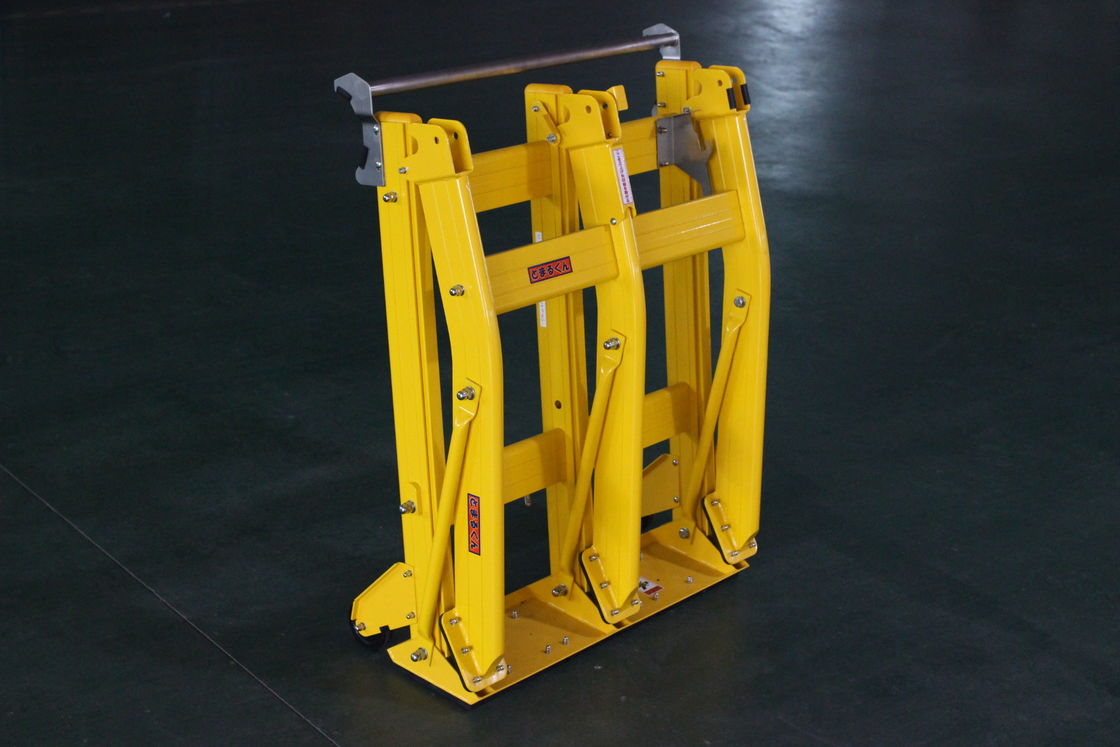

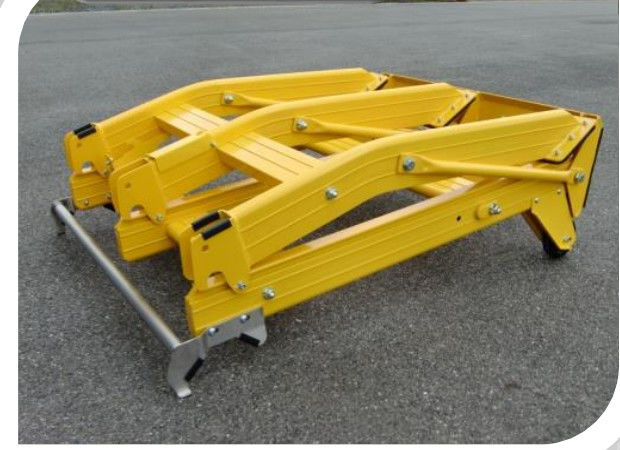

Space-Saving Foldable Design
Another key advantage: the barrier folds compactly to 400mm height, 860mm width, and 1077mm length, saving valuable storage space.
It can be folded and packed. The height of a 40-inch container can hold 26 tins, each holding 8 mobile guardrails.
Advantage Comparison
| Comparison Dimension |
Traditional Facilities (Cones/Water Barriers/Steel Barriers) |
RMHs Small Parking Device |
| Safety |
Warning only, no braking |
Active interception + physical braking |
| Portability |
Requires individual carrying |
One-person push/pull with wheels |
| Storage & Transport |
Bulky, high cost |
Foldable, space-saving |
| Durability |
Prone to rust or aging |
Aluminum + anti-rust coating |
| Applicable Environment |
Mainly daytime |
All-time (LED optional) |
Purchasing Guide
| Consideration |
Suggestions & Notes |
| Application Scenario |
Confirm if used for municipal roads, highway maintenance, or parking lots? This product is designed for low-speed environments (e.g., construction zones). |
| Warning Needs |
Need night work? Recommend adding the suspended LED light guide plate to enhance safety in low visibility. |
| Quantity & Deployment |
Estimate quantity based on work zone length. One-person quick deployment; foldable design saves transport space. |
| Maintenance |
Aluminum + outdoor coating, durable with low maintenance. Regularly check wheels and rubber pad wear. |
Knowledge Q&A
Q1: What is this product mainly used for?
A1: Mainly used for perimeter protection in municipal construction and temporary work zones. It provides a visual warning and can physically brake errant vehicles to protect workers.
Q2: What is the biggest difference between this and ordinary road barriers?
A2: Ordinary barriers only "warn"; this product can "stop." It uses a lever to lift the vehicle's wheel and friction to brake, bringing it to a controlled stop.
Q3: Can one person move it?
A3: Yes, easily. It weighs only 25kg and has universal wheels, allowing one person to easily push it into place. It can also be folded for storage.
Q4: Is it durable? Suitable for long-term outdoor use?
A4: Very durable. The main body is high-strength aluminum with an outdoor-grade electrostatic coating, making it rust-proof and weather-resistant, lasting longer than iron or ordinary plastic products.
Q5: Will the warning effect be reduced when working at night?
A5: No. The product itself is a striking engineering yellow, and it can be equipped with an optional LED light guide plate for active illumination, remaining highly visible at night or in tunnels.
