Foldable Tomarukun Car Park Security Barriers
Anti-ram vehicle barriers safety barrier, mobile easy-to-assemble anti-collision roadblock
This product is composed of aluminum profiles with a strict angle design. When a vehicle impacts the product, the front two wheels of the vehicle are lifted, reducing forward force. The rubber plate at the bottom creates friction with the ground, forcing the vehicle to stop.
Product Specifications
| Item |
Specification |
| Product Name |
Tomarukun Small Parking Device |
| Brand |
RMHs |
| Weight |
25 kg |
| Dimensions |
320 * 1070 * 860 mm |
| Material |
High-strength aluminum |
| Color |
Engineering Yellow |
| Features |
Foldable, with wheels |
Application Scenarios
- Municipal road construction isolation
- Temporary work zone warning protection
- Traffic flow guidance
- Temporary parking lot control
Working Principle
When a vehicle accidentally impacts this device, controlled stopping is achieved through an ingenious mechanical structure.
Three-Step Braking Process
Step 1: Lever Lifting
Upon impact, the device quickly lifts the vehicle's front wheel off the ground using the lever principle, efficiently directing the forward impact kinetic energy to the ground and significantly reducing the vehicle's forward momentum.
Step 2: Friction Braking
The remaining energy is transferred to the specialized wear-resistant rubber pad at the bottom of the device, achieving smooth deceleration braking through high-strength friction between the rubber and the ground.
Step 3: Shock Absorption
The specially designed dual buffer shock-absorption modules at the bottom further absorb impact energy, enhancing the cushioning effect and providing dual protection for personnel and equipment.
The main advantages of the product are: lightweight, foldable, easy to carry and move.

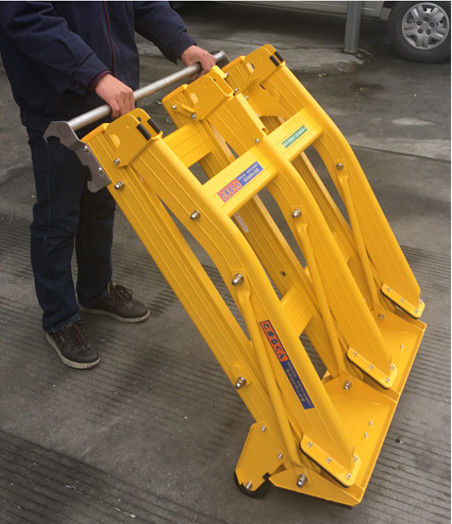

Foldable Design
The ingenious design is very convenient to fold up.
Easy Mobility
Wheels are installed at the bottom of the product, which can be easily moved.
Color Options
Color: Traffic yellow single yellow or Traffic orange single orange. This product uses Pantone colors RAL1023 or RAL1003, providing very eye-catching visibility.
Three Core Advantages
1. True Interception & Controlled Braking
Unlike ordinary barriers that only provide warnings, this device offers physical braking capability. Upon vehicle impact, it lifts the front wheel using the lever principle, directing kinetic energy to the ground. Combined with specialized rubber pad friction braking and dual buffer shock-absorption modules, it achieves smooth, controlled stopping, effectively protecting construction workers.
2. Ultra-lightweight & One-person Deployment
Weighing only 25kg and equipped with universal wheels, it can be easily pushed to the work site by one person without machinery. The innovative foldable design significantly reduces storage volume and lowers transportation and warehousing costs.
3. Strong Weather Resistance & All-weather Applicability
The main body is made of high-strength aluminum with an outdoor-grade electrostatic coating, providing rust resistance and weather durability for a long service life. The highly visible engineering yellow color is eye-catching, and an optional LED light guide plate provides active illuminated warning, ensuring safety during night and low-visibility operations.
Frequently Asked Questions
Q1: What is the main function of this product?
A1: It is mainly used for perimeter protection in work areas such as municipal roads and construction sites. It has dual functions: firstly, it serves as a warning through its high-visibility color; secondly, it achieves braking and stopping through physical interception in case of vehicle incursion, effectively protecting construction workers.
Q2: What is the biggest difference between this and ordinary road barriers?
A2: Ordinary barriers (such as cones and water barriers) can only provide isolation and warning; they will be knocked away upon vehicle impact. This product, however, has physical braking capability. It can lift the wheel through leverage and brake with friction, bringing the vehicle to a controlled stop rather than being knocked away.
Q3: Can one person easily move and deploy it?
A3: Yes, absolutely. The product weighs only 25kg and is equipped with universal wheels at the bottom, allowing one person to easily push it to the work site like rolling a suitcase. When not in use, it can be folded for convenient transportation and storage.
Q4: What is its braking principle?
A4: It adopts a three-step braking mechanism:
- Lever Lifting: Lifts the vehicle's front wheel upon impact, directing kinetic energy to the ground
- Friction Braking: The specialized rubber pad at the bottom creates friction with the ground to decelerate
- Shock Absorption: Dual buffer modules absorb remaining impact energy
The result is a smooth and controlled stop.
Q5: Is this product durable? Suitable for long-term outdoor use?
A5: Very durable. The main body is made of high-strength aluminum with an outdoor-grade electrostatic coating, providing excellent rust and weather resistance. It has a longer service life than ordinary iron products (prone to rust) and plastic products (prone to aging).
Q8: What are the main applicable scenarios?
A8: Suitable for various low-speed environments, mainly including:
- Municipal road construction isolation
- Temporary work zone warning protection
- Traffic flow guidance
- Temporary parking lot control
Q9: Is it convenient for transportation and storage?
A9: Very convenient. The product features a foldable design, significantly reducing the space it occupies when not in use. A single utility vehicle can carry more units, effectively lowering logistics and warehousing costs.
Q10: Can it be used with other warning devices?
A10: Yes. The product has reserved interfaces and can be optionally equipped with a dedicated LED arrow board, creating a combined warning effect with the main unit and further enhancing on-site safety levels.
