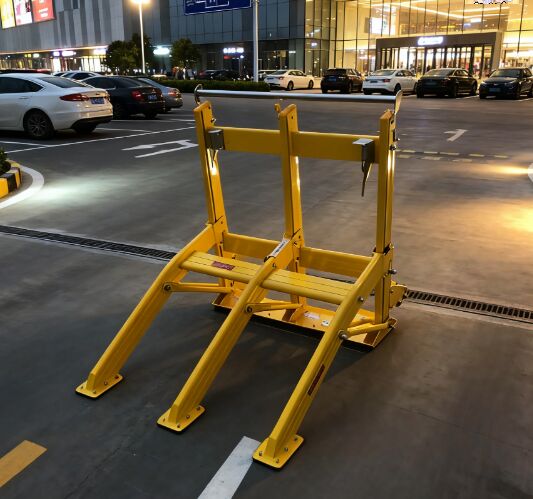

Aluminum Alloy Rustproof Traffic Safety Barrier MVB
Mobile vehicle barrier that saves lives. Portable Vehicle Barrier made from aluminum alloy in traffic yellow for maximum visibility and safety.
The mobile vehicle barrier is designed for urban road construction applications. It functions similarly to traditional road barriers by dividing work areas, but with enhanced safety features that force vehicles entering restricted zones to stop within a short distance, with proven effectiveness.
Product Specifications
| Product Name |
Tomarukun Parking Device |
| Brand |
RMHs |
| Product Weight |
25 kg |
| Main Materials |
High-strength aluminum alloy, wear-resistant rubber |
| Surface Finish |
Outdoor-grade electrostatic spraying |
| Product Color |
Engineering Yellow / Orange (High-visibility warning color) |
| Dimensions |
W320mm × L1070mm × H860mm |
| Structural Features |
Foldable design + Transport wheels |
| Manufacturing Process |
Welding + Bending |
| Applicable Scenarios |
Municipal road work isolation, temporary work zone warning and protection, traffic flow guidance |
| Functional Features |
Dual function of high-visibility warning and physical blocking; Optional hanging LED light guide panel for enhanced indication |
| Safety Characteristics |
Utilizes lever principle to lift vehicle wheels and direct kinetic energy to the ground; Equipped with dual buffer damping modules at the base to absorb impact energy |
| Mobility & Storage |
Lightweight design with wheels, foldable, easy for single-person handling, rapid deployment, and storage |
| Eco-friendliness & Durability |
Recyclable aluminum material; Anti-corrosion electrostatic spraying for outdoor durability in harsh climates |
The mobile vehicle barrier has undergone rigorous testing in Japan. Testing demonstrated that a 4-ton vehicle impacting our device at 60 kilometers per hour was safely stopped within 8.7 meters from the impact point.
Stopping Principle
When a vehicle collides with the device, its internal lever mechanism converts the vehicle's forward impact force into an upward lifting force, raising the front of the vehicle.
Three-Stage Stopping Process:
- Dissipates Energy: The impact force is directed into the ground, dissipating most of the energy
- Frictional Braking: The remaining energy is absorbed by the wear-resistant rubber pad at the base through strong friction
- Cushioning Protection: The buffer modules at the base absorb final impact forces, protecting both vehicle and device
This innovative "lift, dissipate, and friction" approach brings vehicles to a smooth, controlled stop rather than relying on rigid, direct collision.
Product Advantage Comparison
| Comparison Dimension |
RMHs Small Parking Device |
Traditional Concrete Barrier/Water-filled Barrier |
Common Plastic/Rubber Traffic Cone |
Summary of RMHs Core Advantages |
| Core Function |
Active Interception + Strong Warning
Physical blocking + energy absorption for controlled braking |
Passive Blocking + Warning
Relies mainly on mass and volume for rigid blocking |
Pure Warning/Guidance
Almost no physical blocking capability, easily knocked over |
More Comprehensive Functionality, combining high-efficiency warning with active safety interception |
| Safety |
High (Active Cushioning)
Lever-based energy absorption reduces risk of secondary damage |
Medium (Rigid Collision)
High mass provides strong blocking but causes severe vehicle damage |
Low (No Blocking)
Serves as reminder only, cannot prevent vehicle intrusion |
Higher Safety, using scientific energy-absorbing design to stop vehicles while minimizing impact damage |
| Deployment & Mobility |
Very High
Lightweight (25kg) + Wheels + Foldable. Single-person operation |
Very Low
Extremely heavy, requires specialized machinery, time-consuming |
High
Lightweight, portable, but low stability, easily blown over |
Revolutionary Improvement in Deployment Efficiency, saving labor and time costs |
| Visibility & Warning |
Very High (All-Weather)
High-visibility engineering yellow + Optional LED active light source |
Average (Depends on Ambient Light)
Usually single color, no reflection or light source |
Dependent on Accessories
Average base visibility, requires added reflective strips |
Optimized Warning Effect, ensures all-weather, all-scenario high warning |
| Durability & Maintenance |
High
High-strength aluminum + outdoor-grade coating, corrosion-resistant |
High
Very sturdy but surface easily stained and difficult to repair |
Low
Prone to aging, fading, damage, short service life |
Lower Long-term Cost, high-quality materials ensure long life and low maintenance |
| Storage & Transport |
Excellent
Foldable design saves space (reduces volume by >60%) |
Very Poor
Fixed volume and shape, occupies significant space |
Good
Stackable, saves space, but still occupies volume |
Significantly Reduces Logistics & Storage Costs, storage efficiency far exceeds similar products |
| Eco-friendliness & Versatility |
Good
Environmentally friendly, recyclable materials. Modern design |
Medium
High energy consumption, troublesome disposal, bulky appearance |
Poor
Mostly non-recyclable plastic, environmental waste |
Aligns with Green Construction理念, environmentally friendly materials enhance work site image |
Core Advantages Summary
Compared to traditional barriers, the RMHs Small Parking Device integrates "Safety, Intelligence, and Efficiency":
- For Managers: Enhances work efficiency and flexibility, enabling rapid response and low-cost deployment
- For On-site Personnel & Drivers: Provides higher level of safety protection, reducing accident injuries through active cushioning
- From a Total Cost Perspective: Long lifespan, reusability, and low transport/storage costs provide significant Total Cost of Ownership (TCO) advantage
You can adjust the number of units according to your actual usage requirements.
Quick Procurement Guide
1. Consider the Scenario
- Need to block vehicles (construction site entrance): Choose this energy-absorbing interception device
- Only need a warning (traffic flow guidance): Standard traffic cones will suffice
2. Check Key Features
- Safety: Ask about the stopping principle. Choose products that stop vehicles "gently" by absorbing energy
- Convenience: Ensure it has wheels and is foldable. Ideally operable by one person
- Durability: Choose models made of aluminum with outdoor-grade coating - lighter and more rust-resistant
- Visibility: Color should be bright (engineering yellow). Adding LED lights for nighttime use is highly recommended
3. Calculate Total Cost
Don't just consider purchase price. This product lasts for years, saving money on transport machinery, storage space, and repeatedly replacing cheap cones. More cost-effective long-term.
4. Ask About Service
Inquire about warranty period and any successful case studies.
Quick FAQ
Q1: Can this really stop a car? Will it damage the vehicle?
A1: Yes. It uses a "lift and friction" method to bring the vehicle to a gradual stop, not rigid collision, which helps minimize damage.
Q2: It weighs 25kg. Is it easy for one person to handle?
A2: Yes. It has wheels and is foldable. One person can easily pull it, set it upright, and move it around.
Q3: Will it rust in the rain? Is it visible at night?
A3: Made of aluminum with anti-rust coating, it is highly rust-resistant. The yellow color is very visible, but adding LED lights for nighttime use is strongly recommended for added safety.
Q4: What are its advantages over concrete blocks or plastic cones?
A4: Vs. Concrete Blocks: Much lighter and more flexible. One person can handle it, greatly improving efficiency. Vs. Plastic Cones: It can actually stop a vehicle, not just get knocked over. It's also more durable.
Q5: What else should I buy with it?
A5: Mainly consider LED warning lights (essential for night use) and any connectors needed if using multiple units together.
