Ral 1003 745*218*660mm Vehicle Security Lock

Ral 1003 745*218*660mm Vehicle Security Lock

RAL 1003 vehicle security lock

745x218x660mm vehicle lock

heavy-duty vehicle security lock

Place of Origin:

CHINA

Brand Name:

RMHs

Certification:

Iso9001

Model Number:

Parking lock-handheld

Contact Us

Request A Quote
Product Details
Material:
Aluminum+rubber
Applicable Model:
Family Car
Dimensions(folded):
L151*W218*H816mm
Dimensions(defolded):
L745*W218*H660mm
Color:
Yellow
Thickness Of Rubber:
6mm
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
USD 1,329/unit
Packaging Details
Carton packing 3600pcs 40-inch containers
Delivery Time
30
Payment Terms
T/T,L/C
Supply Ability
500 units per month
Product Description

This product is a retractable wheel lock (parking lock) designed to enhance safety for slope parking and temporary parking scenarios.

Constructed with high-strength aluminum alloy + anti-slip rubber, it weighs only 2.2kg and features a foldable design for easy trunk storage. The unique triangular mechanical structure combined with a 3cm thickened rubber friction plate generates powerful ground grip, effectively preventing vehicle backsliding or displacement on slopes, rainy roads, or icy surfaces.

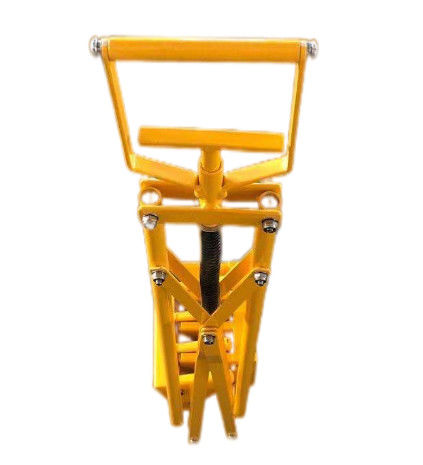

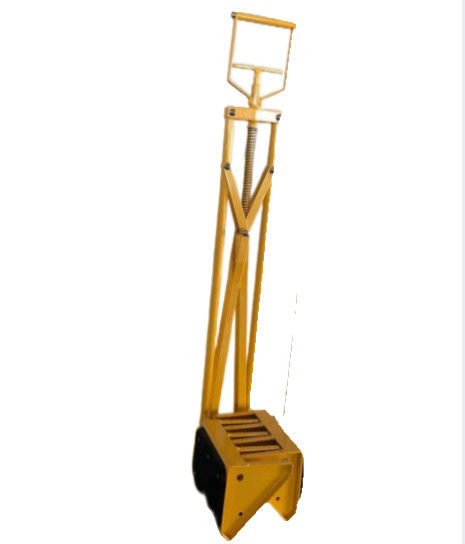

Ral 1003 745*218*660mm Vehicle Security Lock 0 Ral 1003 745*218*660mm Vehicle Security Lock 1

Specifications
ItemSpecification
Product NameRetractable Wheel Lock / Parking Lock
BrandRMHs
Weight2.2 kg
MaterialHigh-strength aluminum alloy + anti-slip rubber
Rubber Friction Plate Thickness3 cm
Collapsed Size151 × 218 × 816 mm
Expanded Size745 × 218 × 660 mm
Applicable VehicleVehicles up to 4 tons (family sedans, SUVs, MPVs, light vans, etc.)
StructureTriangular support, foldable/retractable, hand-pull design
InstallationHand-held standing installation, no bending required
OperationOne-hand operation
Usage Configuration2 units/set or 4 units/set
ColorYellow / White (customizable)
CustomizationSize can be customized according to wheel dimensions
Application ScenariosSlope parking, rainy/snowy roads, breakdown inspection, tire changing, temporary parking

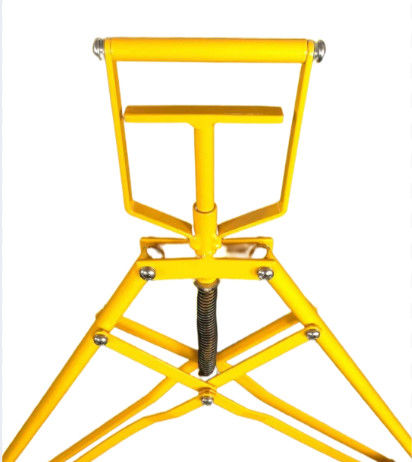

Ral 1003 745*218*660mm Vehicle Security Lock 2

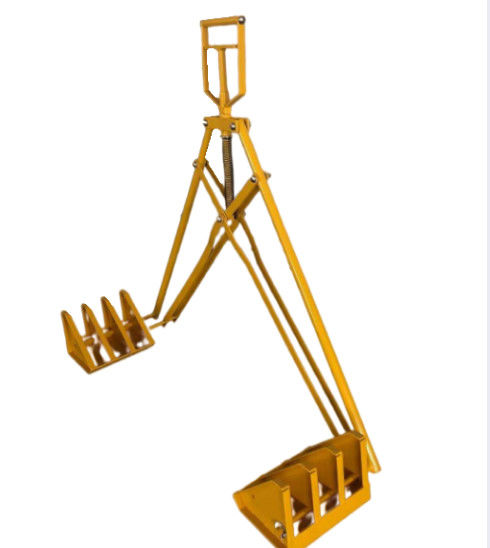

Ral 1003 745*218*660mm Vehicle Security Lock 3

Advantages
  1. Stand-up operation for wider visibility – Allows you to operate while standing, providing a broader field of vision.

  2. Better awareness of passing traffic – Clear sight of surrounding vehicles during operation helps avoid accidents.

  3. Lightweight and foldable for easy trunk storage – Compact and foldable design fits easily in the trunk.

  4. Simple structure for one-hand operation – Straightforward design allows full operation with a single hand.

  5. Special rubber base for better braking – The specially designed rubber at the bottom increases ground friction for superior braking performance.

Ral 1003 745*218*660mm Vehicle Security Lock 4

Ral 1003 745*218*660mm Vehicle Security Lock 5

Usage & Scenarios
Application Scenarios
ScenarioDescription
Slope parkingPrevents vehicle rollback or forward movement on inclines
Rainy or snowy weatherAnti-slip on wet or icy roads, prevents wheel displacement
Vehicle breakdown inspectionSecures wheels to ensure mechanic safety
Tire changingKeeps vehicle stable and non-slip during tire replacement
Temporary parkingQuick deployment, no ground drilling required
Outdoor campingSecures RVs or campers on uneven terrain
Logistics loadingPrevents unexpected vehicle movement during loading/unloading

Ral 1003 745*218*660mm Vehicle Security Lock 6


Instructions

Three-step operation:

StepActionDescription
1ExpandStand upright and pull the lock open until it locks into triangular position
2PlacePosition tightly against the bottom of the wheel, rubber plate facing down and fully contacting the ground
3FoldAfter use, collapse and store back in the trunk

Usage tips:

  • For slope parking, it is recommended to use 4 units (2 per front wheel + 2 per rear wheel)

  • For flat ground temporary parking, 2 units are sufficient (fix one side of the vehicle)

  • Regularly clean the rubber plate to maintain anti-slip performance

Ral 1003 745*218*660mm Vehicle Security Lock 7

Q&A

Q: What material is this parking lock made of?
A: Aluminum alloy with a rubber base.

Q: What is the main function?
A: To securely fix wheels and prevent vehicle slippage or displacement.

Q: Is it portable?
A: Yes, foldable design makes it compact for easy trunk storage.

Q: Is it complicated to operate?
A: No, one-hand operation is simple and straightforward.

Q: Why is it yellow?
A: The high-visibility yellow color makes it easy to spot, enhancing safety during use.

Q: Can the size be customized?
A: Yes, sizes can be customized according to wheel dimensions.

Q: Which vehicles is it suitable for?
A: Suitable for vehicles up to 4 tons (sedans, SUVs, MPVs, etc.).

Q: How much does it weigh?
A: Approximately 2.2kg — lightweight and portable.
