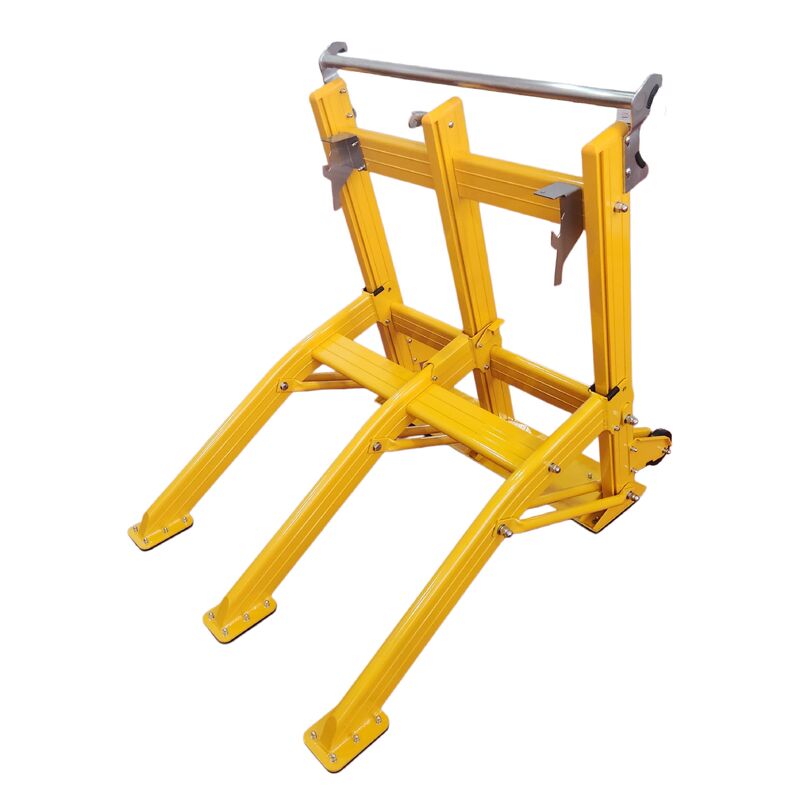

25kg Foldable Portable Vehicle Barricades in High-Visibility Engineering Yellow for Road Safety

25kg Foldable Portable Vehicle Barricades in High-Visibility Engineering Yellow for Road Safety

collapsible metal road barriers

20KG parking space barrier

collapsible parking space barrier

Place of Origin:

CHINA

Brand Name:

RMHs

Certification:

Iso9001

Model Number:

MINI TOMARUKUN

Contact Us

Request A Quote
Product Details
Folding Size:
L1100*W664*H200
Unfold Size:
L1040*W664*H894
Weight:
20 KG
Material:
Aluminum
Unit Weight:
25kg
Main Material:
High-strength Aluminum Alloy
Operating Dimensions:
830 × 860 × 1080mm
Folded Dimensions:
830 × 1090 × 365mm
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
USD 12,964/unit
Packaging Details
wooden box 360pcs 40-inch containers
Delivery Time
30
Payment Terms
T/T
Supply Ability
500 units per month
Product Description
Durable Portable Vehicle Barricades
Offering safety boundaries and vehicle interception in road maintenance and construction areas
Product Overview
In road maintenance and municipal construction, safety is always the first line of defense. Tomarukun is built for exactly this purpose—a lightweight vehicle interception device standing at the perimeter of the work zone, using high-visibility engineering yellow to draw a clear safety boundary for oncoming traffic.
It is not just a warning sign, but a reliable physical barrier. Weighing only 25kg and made of high-strength aluminum alloy, it features a foldable design with built-in mobility wheels, allowing one person to easily handle transport and deployment. In daily use, its high-visibility color warns oncoming vehicles to slow down from a distance. When an out-of-control vehicle intrudes, the built-in lever mechanism lifts the front wheels at the moment of impact, redirecting horizontal impact force vertically into the ground, while the bottom rubber pad grips the road surface tightly to forcibly intercept the vehicle.
Tomarukun portable vehicle barricade in use at construction site
Product Specifications
Item Specification
Product Name Tomarukun Stopping Device
Brand RMHs
Unit Weight 25kg
Main Material High-strength aluminum alloy
Bottom Friction Component Specially designed wear-resistant rubber pad
Surface Finish Outdoor-grade electrostatic spraying (rust-proof and weather-resistant)
Color Engineering Yellow / Orange-Yellow
Operating Dimensions 830 × 860 × 1080mm
Folded Dimensions 830 × 1090 × 365mm
Structure Foldable + bottom mobility wheels
Optional Accessory LED indicator board
Close-up view of Tomarukun barricade showing construction details Tomarukun barricade deployed in road construction zone
Product Advantages
  • Lightweight and Portable - Single-Person Operation: Weighing only 25kg with built-in mobility wheels and a foldable design, one person can independently handle transport, deployment, and storage from warehouse to site - no mechanical equipment assistance required.
  • Space-Saving - Reduced Transport and Storage Costs: Folded height reduces from 1080mm to 365mm, with volume decreased by nearly two-thirds. Increased transport loading capacity, reduced warehouse footprint, and lower logistics costs.
  • Warning and Interception in One: High-visibility engineering yellow provides long-distance visual warning, alerting oncoming vehicles to slow down in advance. If a vehicle ignores the warning and forcibly intrudes, physical interception is immediately activated. One device completes both early warning and braking functions.
  • Short Braking Distance - Stable Performance: Upon impact, the lever lifts the front wheels, redirecting horizontal kinetic energy vertically into the ground, combined with rubber pad friction energy dissipation. Stopping distance is only 8.7 meters at 60km/h and 3.0 meters at 40km/h - braking performance is predictable and consistent.
  • Safe and Eco-Friendly - No Secondary Hazards: The aluminum alloy body is impact-resistant and non-combustible, producing no sparks upon collision - eliminating fire hazards. Impact force is dissipated through ground conduction and friction, avoiding severe shock to vehicle occupants from rigid collisions. Material is 100% recyclable.
  • All-Scenario Adaptability - Minimal Maintenance: Outdoor electrostatic coating provides rust and weather resistance, unaffected by temperature or humidity. Optional LED indicator board available for nighttime construction needs. Daily maintenance only requires checking rubber pad wear - no professional servicing needed.
Tomarukun barricade showing foldable design and mobility features Tomarukun barricade in folded position for transport Multiple Tomarukun barricades deployed in construction area
Advantage Comparison
Comparison Item Tomarukun Traditional Cones Concrete Barriers
Core Function Warning + Interception Warning only Interception only
Interception Method Lift + redirect impact + friction braking None Rigid blocking
Impact on People/Vehicles Impact force directed to ground, minimal damage No interception effect Hard collision, severe damage
Weight 25kg Lightweight Hundreds of kilograms
Mobility Single person pushes Carried by hand Requires crane
Storage Foldable, volume reduced by 2/3 Non-foldable Non-foldable
Deployment Time 1 minute 1 minute Several hours
Reusability Can be reused multiple times Easily damaged Reusable but difficult to move
Applicable Scenarios Temporary work, mobile deployment Temporary warning Permanent or semi-permanent isolation
Eco-Friendly Material Aluminum alloy, 100% recyclable Plastic, hard to degrade Recyclable but energy-intensive
Comparison showing Tomarukun vs traditional safety barriers
Stopping Principle
Upon vehicle impact, the device lifts the front wheels to redirect impact force to the ground, combined with rubber pad friction to bring the vehicle to a stop.
Three Steps:
  1. Impact trigger: The vehicle's front wheels strike the front support arm, activating the mechanical structure.
  2. Lift and redirect: The lever lifts the front wheels, redirecting horizontal forward impact force vertically downward into the ground - significantly reducing the vehicle's forward momentum.
  3. Friction braking: The remaining force is transferred to the bottom rubber pad. The pad presses firmly against the ground, generating friction that converts kinetic energy into thermal energy, gradually decelerating the vehicle until it stops.
Diagram showing Tomarukun stopping principle and mechanism
Usage Steps
Deployment: Push to position → Face oncoming traffic → Unlock buckle and lower arm → Rubber pad contacts ground → Ready
Storage: Lift arm → Fasten lock buckle → Push away
Key points: Face oncoming traffic / Rubber pad must contact ground - not suspended / Use LED board at night
Step-by-step deployment of Tomarukun barricade Proper storage procedure for Tomarukun barricade
Product Q&A
Q: What is Tomarukun?
A: A lightweight vehicle interception device for road construction, combining warning and braking functions.
Q: How heavy is it? Can one person operate it?
A: 25kg, with built-in wheels and foldable design - one person can easily push, deploy, and store it.
Q: What is the braking principle?
A: Purely mechanical. Upon impact, the lever lifts the front wheels, directing impact force to the ground, while the rubber pad brakes through friction energy dissipation.
Q: What is the stopping distance?
A: Approximately 8.7 meters at 60km/h and 3.0 meters at 40km/h (on dry asphalt roads).
Q: What are the advantages over traffic cones?
A: Cones only warn; Tomarukun both warns and intercepts.
Q: What about compared to concrete barriers?
A: Concrete barriers weigh hundreds of kilograms and require a crane. Tomarukun weighs only 25kg - one person can push and deploy it in 1 minute.
Q: Can it be used at night?
A: Yes. It features high-visibility yellow and an optional LED indicator board is available.
Q: What scenarios is it suitable for?
A: Road construction, maintenance, power repairs, lane closures, parking lot control, and other low-speed scenarios.
Q: What daily maintenance is required?
A: Check rubber pad wear and lock buckle flexibility monthly; check surface coating quarterly and touch up paint if damaged.
