Name: Portable Blade Truck Mounted Attenuator
Brand: Shanghai Riminghuan Trading Company Limited
SKU: Back g Guard-Article crash
Price: 21,004.00 USD
Availability: InStock

Home > Products > Truck Mounted Attenuator >

Portable Blade Truck Mounted Attenuator

Blade Truck Mounted Attenuator

portable attenuator truck crash

Blade attenuator truck crash

Place of Origin:

CHINA

Brand Name:

RMHs

Certification:

Iso9001

Model Number:

Back g Guard-Article crash

Request A Quote

Product Details

Material:

Aluminum

Size:

L1800mm*W850*H350

Weight:

98kg

Applicable Models:

Truck Van Garbage Truck And So On

Color:

Red White 3Mreflective Film

Surface Process:

Electrostatic Spraying

Payment & Shipping Terms

Packaging Details

wooden box 72pcs 20-inch containers

Delivery Time

Payment Terms

T/T

Supply Ability

30PCSper1 month

Anti Impact Aluminum Traffic Mounted Attenuator

Get Best Price

Traffic Yellow Rustproof Truck Mounted Crash Attenuator

Get Best Price

Anti Collision Detachable Rear Impact Bumper

Get Best Price

RAL1023 Movable Truck Mounted Attenuator

Get Best Price

86-573-84755380

wy@zjrmh.com

86-573-84755385

Contact Now

Product Description

Portable Blade Truck Mounted Attenuator

High-strength reflective film portable Blade Truck Mounted Attenuator designed for superior rear-end collision protection on trucks and trailers and installed at the rear of trucks and trailers.

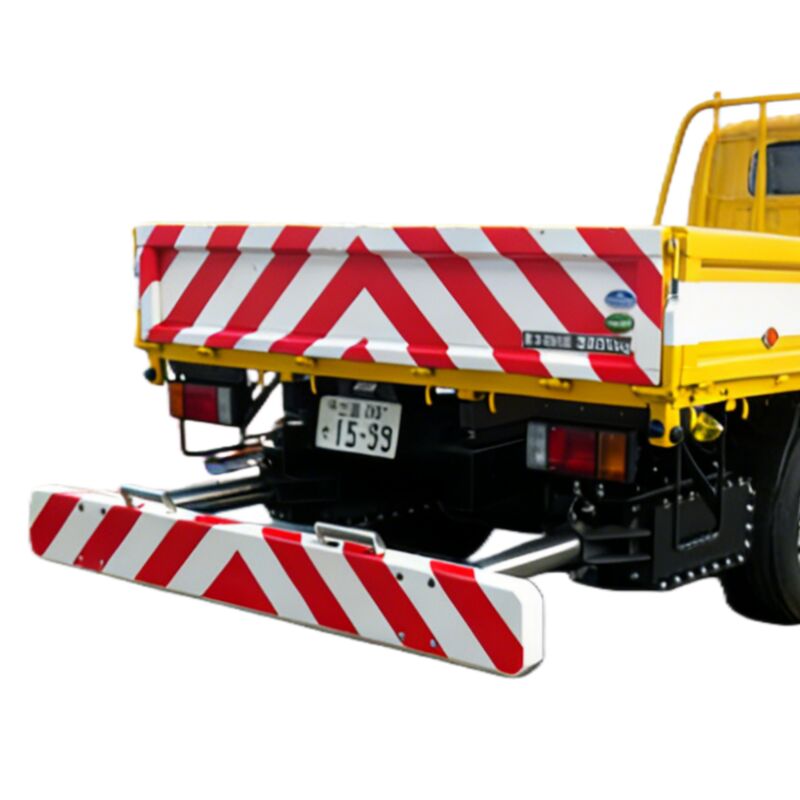

A "retractable safety shield" designed for the rear of trucks—deployed when parked to prevent underride in rear-end collisions, retracted when driving to avoid obstruction. It is both a compliant equipment and a lifeline.

Constructed using channel steel, stainless steel, and other durable materials for long-lasting performance.

Product Specifications

Rated Speed	100 KM/H
Applicable Model	2.0~4.0 ton
Installation Method	Vehicle Chassis
Foundation Weight	98.3 kg (according to vehicles)
Energy Absorbing Material	Aluminium Alloy
Foundation Size	W1800L850H350

Comprehensive Value Summary

Dimension	Features
Safety Performance	Triple protection: physical barrier + energy absorption + optical warning
Ease of Use	Retractable design, balancing driving compliance and parking protection needs
Adaptability	Full customization + dual model options
Technical Reliability	Dual domestic and international testing certifications + patented technology support
Economic Practicality	One-time installation for long-term protection, reducing accident losses and insurance risks

This product is a new-generation active safety system for truck rears, integrating patented energy absorption, intelligent folding, high visibility, and full customization. It upgrades from "passive impact" to "active protection + intelligent buffering," redefining safety standards for truck rear ends.

Practical Scenario Coverage

Suitable for:

Temporary stops on highways
Construction vehicles on urban roads
Logistics and loading/unloading vehicles
Driving at night or in low-visibility conditions

Core Product Knowledge Q&A

Q1: What is this product and what is it used for?

A1: This is an anti-collision device designed for the rear of trucks and vans, commonly known as an "underride guard."
Core Functions:

Prevent Underride: Prevents smaller vehicles from sliding under the truck during rear-end collisions.
Reduce Damage: Absorbs impact energy through its built-in buffer structure.
Enhance Warning: High-visibility reflective film alerts following vehicles.

Q2: Can it really prevent underride? How does it work?

A2: Yes, it works through a three-part mechanism:

Height Matching: Installation height is about 100 cm, effectively blocking the front end of smaller vehicles (70-80 cm tall).
Rigid Barrier: The main channel steel frame forms a sturdy barrier.
Energy Absorption: The patented honeycomb aluminum structure absorbs impact force.

Q3: Is it convenient for daily use? Does it require frequent operation?

A3: Very convenient -- use it only when needed:

While driving normally: Fully retracted, taking up no extra space.
During extended parking (e.g., loading/unloading, maintenance): Pull out and deploy (about 15 seconds).
No daily operation required; use only when protection is needed.

Q4: Is installation complicated? Are professional tools required?

A4:

Professional installation recommended: Requires drilling and fixing to the rear chassis frame.
Self-installation possible: Those with professional repair skills can refer to the installation guide.
Tool requirements: Professional tools such as a torque wrench are needed.

Q5: Will it fit my vehicle?

A5:

Compatible vehicles: Various trucks with a total weight of 2-4 tons.
Customizable dimensions: Can be tailored to your vehicle's specific measurements.
Model options: Available with or without a step plate.

Q6: Is the quality reliable? Are there certifications?

A6:

Material certification: The buffer aluminum material has passed safety testing in Italy.
Patent protection: The honeycomb structure holds a national invention patent.
Process assurance: Stainless steel for rust prevention + electrostatic spray coating.

Q7: Is maintenance complicated?

A7: Essentially maintenance-free:

Monthly: Check that locks and latches are secure.
Every six months: Lubricate the guide rails.
Annual inspection: Check bolt tightness.

Q8: What happens if it gets damaged in a collision?

A8:

Minor collision: Normal deformation of the buffer structure, still usable.
Severe damage: The buffer module or guide rails can be replaced individually.

Q9: Besides safety, what other benefits does it offer?

A9: Three additional values:

Reduces accident costs: Avoids high compensation payouts.
Enhances corporate image: Demonstrates a commitment to safety.

Q10: What is the purchasing process?

A10: Four simple steps:

Provide vehicle information.
Confirm customization requirements.
Place order for production (7-10 days for standard models).
Install and use.
