Anti-collision absorption municipal roads Vehicle Security Barriers. The anti-collision absorption device is installed in the rear of large vehicles to prevent rear end collision of rear vehicles into the bottom of large vehicles and protect the safety of people and vehicles. It can also be used in the rear of mobile operation vehicles and temporary operation vehicles on municipal roads to provide safety protection for on-site workers. All the products put on the market have passed the road safety test in Japan and meet the road safety specifications.
The anti-collision buffer package is a set of 2, with hook design, which is very light and simple. Just hang the product at the rear of the vehicle. Compared with those bulky and bulky buffer devices, the device is very fast and easy to move and install.
The energy absorbing material with built-in honeycomb design in the shock absorption part of the product has obtained the invention patent, which can give full play to its cushioning performance no matter from the front or side impact. And the absorption material utilization rate and elongation is very high, for the case of collision is not very serious, can be simply repaired, continue to use, greatly saving the cost.

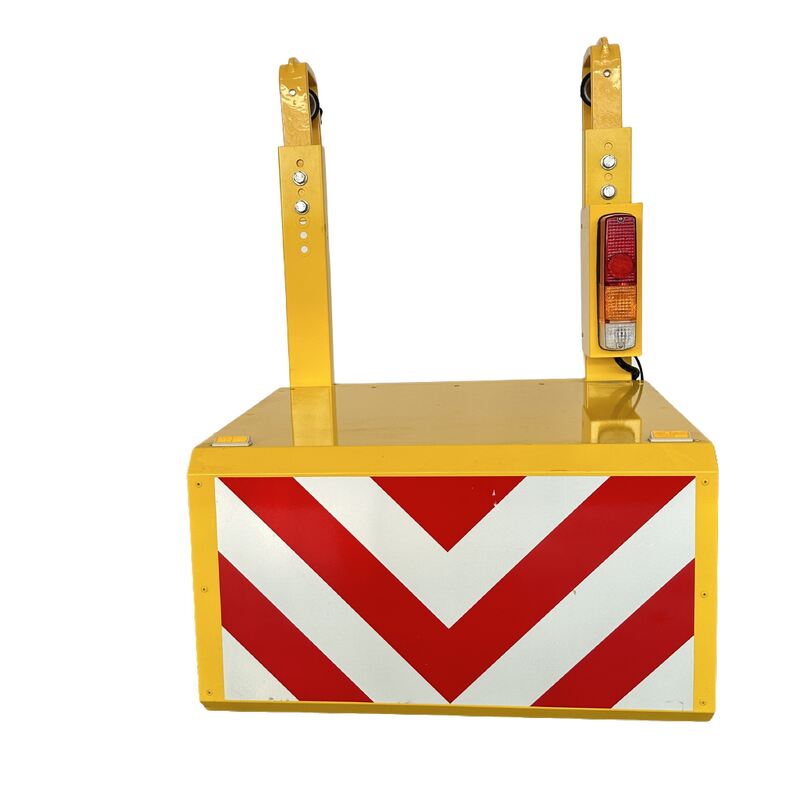

Crash Attenuator Product Specifications
| Item |
Specification & Description |
| Product Model |
RMHs |
| Standard Dimensions |
Width 660mm * Length 650mm * Height 1055mm |
| Material Composition |
Housing: Aluminum Plate, Aluminum Profiles, Steel Beams
Core: Aluminum Honeycomb Impact-Absorbing Structure |
| Surface Finish |
Electrostatic Spray Painting |
| Unit Weight |
37 kg |
| Usage Configuration |
2 units per set (used in combination) |
| Primary Functions |
1. Safety Protection: Absorbs rear-impact energy to prevent underride collisions.
2. Active Warning: Alerts following vehicles via high-visibility color, lights, and reflective markings. |
| Applicable Vehicles |
Municipal road maintenance vehicles such as street sweepers, water trucks, tunnel washers, mowers, etc. |
| Installation Method |
Hanging Type (equipped with top hooks) for quick installation and removal. |
| Mobility Design |
Fitted with wheels at the base for easy relocation and deployment. |
| Warning Features |
1. Color: High-visibility Yellow
2. Lighting: LED Strobe Lights on both sides
3. Reflection: Large-area reflective film on the front |
| Certification |
Passed Japanese road safety tests and complies with road safety usage standards. |
Product Advantages
- Proven Safety: The core energy-absorbing structure is certified through professional crash tests, effectively absorbing impact forces and preventing vehicle underride.
- Quick Installation: Features a top hook design. Two people can quickly hang, install, or remove it, significantly reducing setup time.
- High Mobility: Equipped with built-in wheels for easy movement between different vehicles or work sites, offering versatile application.
- Enhanced Visibility: Combines high-visibility yellow color, LED strobe lights, and large reflective panels for all-round, 24/7 warning.
- Lightweight & Durable: Primarily constructed from aluminum, offering a robust yet lightweight structure for easy handling, along with excellent corrosion resistance for long service life.
This product combines effective protection, rapid deployment, and high visibility into an ideal safety solution for the rear of mobile work vehicles.
RMHs TMA: Questions & Answers
Q1: What is this product for?
A1: It's hung on the rear of work vehicles (like sweepers/water trucks) to absorb rear-impact forces, prevent cars from underriding, and protect people.
Q2: Is it complicated to install?
A2: No, it's simple. Use two units as a set. Hang them directly on the vehicle's rear using the top hooks.
⚠️ Note: You must ensure the hooks and vehicle attachment points are very secure to prevent detachment.
Q3: What if it gets hit?
A3: If impacted, you must stop using it immediately and replace it!
- The internal structure may be damaged, drastically reducing its protective capability.
- Never attempt to repair and reuse it yourself.
Q4: What about daily care?
A4:
- Storage: Keep indoors in a dry place. Avoid prolonged exposure to sun and rain.
- Moving: Use the built-in wheels to roll it. Avoid knocking or dropping it.
- Cleaning: Keep the reflective film and light covers clean to ensure high visibility.
Q5: Can any vehicle use it?
A5: It's primarily designed for low-speed municipal work vehicles (like sweepers, water trucks).
⚠️ Note: Before purchase, confirm it matches your vehicle model and size. Contact us for customization options for special vehicles.
