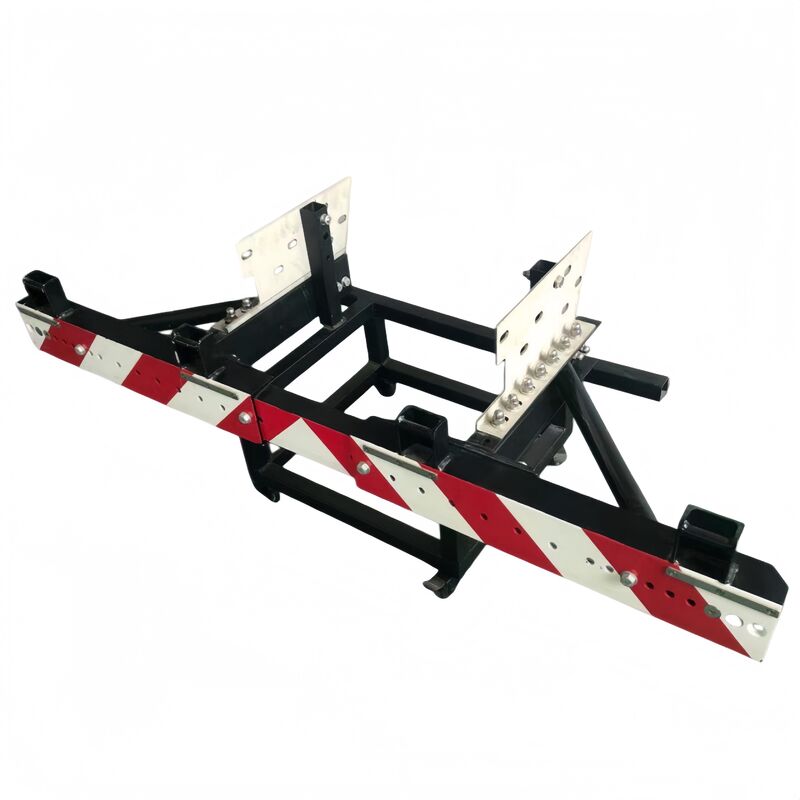

Iron Lifeline Rear End Highway Crash Attenuator With Reflective Film
Professional Rear-End Collision Protection System
The Iron Lifeline Rear End Collision Highway Crash Attenuator is a driver protection device designed to prevent catastrophic rear-end collisions. This Truck Mounted Attenuator (TMA) system provides critical safety for both commercial vehicle operators and following motorists.
Designed based on the proven technology from Japan's HANAI CO., LTD., this system serves as the essential "lifeline" for truck rear-end safety, effectively addressing the dangerous height mismatch between passenger vehicles and commercial trucks.
Product Specifications
| Specification |
Details |
| Brand |
RMHs |
| Standard Dimensions |
Width 1800mm × Length 850mm × Height 350mm |
| Dimension Feature |
Customizable - Adjustable according to vehicle models and mounting positions |
| Main Materials |
Structural Frame: Channel steel, Stainless steel
Buffer Component: Aluminum alloy |
| Surface Finish |
Electrostatic spray coating (excellent corrosion resistance, rust prevention, and weather resistance) |
| Weight |
Approx. 98.3 kg (baseline weight; varies by vehicle model) |
| Applicable Vehicle Weight |
Vehicles weighing 2.0 ~ 4.0 tons (custom solutions available for other weights) |
| Installation Method |
Suspension mounting, fixed to rear chassis/frame longitudinal beams |
| Structural Features |
Telescopic Design:
- Retracted Position: Convenient for driving, saves space, complies with regulations
- Extended Position: Deployed when parked, forms effective protective barrier
- Equipped with wheels for easy operation and movement |
| Product Types |
Two configurations:
1. With Step Plate: Integrated access to cargo area
2. Without Step Plate: Focused anti-collision function |
| Standard Color |
Red and white (high-visibility scheme) |
| Color Options |
Customizable - Available in corporate colors or customer requests |
| Core Functions |
1. Block and Prevent Underride: Physical barrier against truck underride
2. Energy Absorption and Buffer: Absorbs and disperses impact energy
3. Active Warning: Eye-catching visual warning system |
Comparative Advantage Analysis
| Comparison Dimension |
RMHs Telescopic Anti-Rolling Beam |
Traditional Fixed Anti-Roll Bar |
No Protective Device |
Market Standard Non-Telescopic Guard |
| Core Safety Performance |
★★★★★
Dual Protection: Physical barrier + Energy absorption |
★★☆☆☆
Rigid blocking only, poor energy absorption |
☆☆☆☆☆
High risk of fatal underride injuries |
★★★☆☆
Basic blocking, limited buffering capability |
| Functionality & Convenience |
★★★★★
Telescopic design: Retracts when driving, extends when parked |
★☆☆☆☆
Permanent protrusion affects clearance and visibility |
★★★☆☆
No added functionality or inconvenience |
★★☆☆☆
Fixed protrusion with clearance and regulation issues |
| Durability & Maintenance |
★★★★☆
Corrosion-resistant materials, periodic lubrication required |
★★★★☆
Simple structure, low maintenance, but prone to impact damage |
★★★★★
No maintenance required |
★★★☆☆
Potential corrosion issues, fixed position impact risk |
| Cost-Effectiveness |
★★★★☆
Higher initial investment but reduces accident costs and insurance claims |
★★☆☆☆
Low initial cost but potential indirect costs from vehicle hindrance |
★☆☆☆☆
No safety investment, high financial risk in accidents |
★★★☆☆
Moderate cost, basic protection, average cost-performance |
| Added Value |
High
Corporate responsibility, safety management benchmark, mobile advertising |
Low
Viewed as simple protective bar, somewhat outdated |
None |
Relatively Low
Standard safety feature, lacks differentiation |
Procurement Recommendations
- Safety First: Prioritize telescopic functionality with professional energy-absorption design
- Precise Matching: Complete vehicle confirmation and measurement before purchase
- Full-Cycle Consideration: Evaluate installation costs, accident cost savings, insurance benefits, and brand value
Frequently Asked Questions
1. What is this product?
A telescopic crash guard installed at the rear of trucks and commercial vehicles to prevent smaller cars from underriding in rear-end collisions, protecting following vehicle drivers.
2. Which vehicles is it suitable for?
Primarily used for pickup trucks, box trucks, semi-trailers, and trailers. Standard models fit 2-4 ton vehicles with customization available.
3. How does it protect smaller car drivers?
Truck rears are high while car fronts are low, creating underride risk. The beam blocks this gap and absorbs impact force, protecting the driver's head and chest area.
4. What is the purpose of the telescopic function?
- Retracted while driving: Maintains ground clearance, visibility, and regulatory compliance
- Extended while parked: Forms active safety barrier during maintenance or work operations
5. Where is it installed?
Mounted via suspension system, fixed to the rear chassis or frame of the vehicle.
6. What types are available?
- With step plate: Provides access to cargo area
- Without step plate: Simplified collision protection design
7. Can the color be customized?
Yes. Standard high-visibility red and white available, plus custom colors upon request.
8. Why is it considered safer?
- Durable materials: Channel steel/stainless steel structure with aluminum alloy buffering
- Energy-absorbing design: Effectively disperses impact force
- Flexible telescopic function: Balances daily convenience with parked protection
9. What are its main advantages?
Resolves the conflict between protection and convenience: unobtrusive while driving, transforms into life-saving guard when parked.
10. Does it require professional installation?
Yes, professional installation is recommended to ensure secure mounting without compromising vehicle structure and safety.
