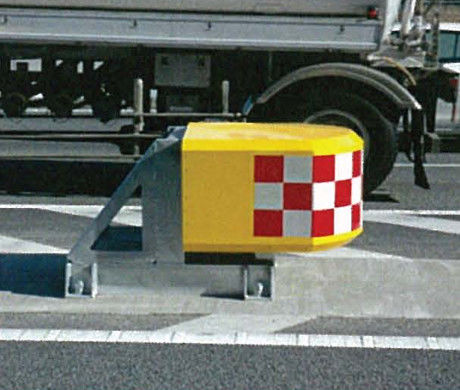

Fork And Tunnel Entrance Impact Attenuator Pile
Anti collision pier Collision avoidance at fork and tunnel entrance Impact Attenuator Pile
This is a safety anti-collision mat for highway forks, which is generally installed at highway intersections and accident-prone areas. This anti-collision pad protects the safety of people and vehicles by absorbing the impact energy generated during the collision. It can effectively absorb the impact of collision and reduce accident damage.
Internal structure
| The product has obtained the registration number CB-080027-A in Japan | |
| Basic specification(Assumed speed 80km/h for all vehicles) | |
| Model | HSK-100 |
| Dimensions (W) | 1012mm |
| Dimensions of above-ground part (H) | 880mm |
| Dimensions of under-ground part (H) | 344mm |
| Dimensions of above-ground part (L) | 1577mm |
| Dimensions of under-ground part (L) | 2800mm |
| Foundation size | 1700*3500mm |
| Foundation depth | 650mm |
| Foundation weight | 380kg |
The product has been tested at 100km / h, 80km / h and 60km / h and passed the collision test. The following is the data obtained by Toyota at 60km / h.
Vehicle acceleration characteristics
♦RED line :Dying
♦Brown line :Seriously injured
♦Light brown line: Minor injuries
It's ideal for local authority use, street works or for use on high speed roads.
