Reflective Film Damping Device Truck Mounted Attenuator Anti Collision

Reflective Film Damping Device

Anti Collision Iron Truck Mounted Attenuator

Iron Anti Collision Truck Mounted Attenuator

Place of Origin:

CHINA

Brand Name:

RMHs

Request A Quote

Reflective Film Damping Device Truck Mounted Attenuator Anti Collision

Product Details

Material:

Iron

Color:

Red White 3M Reflective Film

Weight:

98kg

Size:

L1800mm*W850*H350

Area Of Application:

High Speed Road

Principle:

Prevent The Front Of The Car From Hitting The Bottom Of The Truck

Contractible Or Not:

Contractible

Function:

Shock Absorption

Payment & Shipping Terms

Packaging Details

wooden box 72pcs 20-inch containers

Delivery Time

Payment Terms

L/C,T/T

Supply Ability

30PCSper1 month

Anti Impact Aluminum Traffic Mounted Attenuator

Get Best Price

Traffic Yellow Rustproof Truck Mounted Crash Attenuator

Get Best Price

Anti Collision Detachable Rear Impact Bumper

Get Best Price

RAL1023 Movable Truck Mounted Attenuator

Get Best Price

86-573-84755380

wy@zjrmh.com

86-573-84755385

Contact Now

Product Description

Reflective Film Damping Device Truck Mounted Attenuator Anti Collision

98kg High Speed Road Truck's Rear Anti-Collision Damping Device

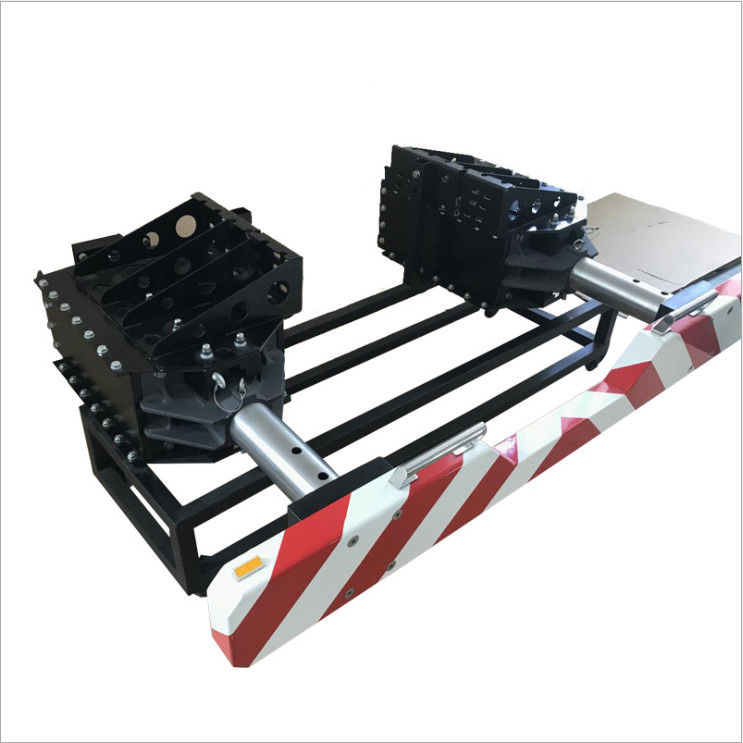

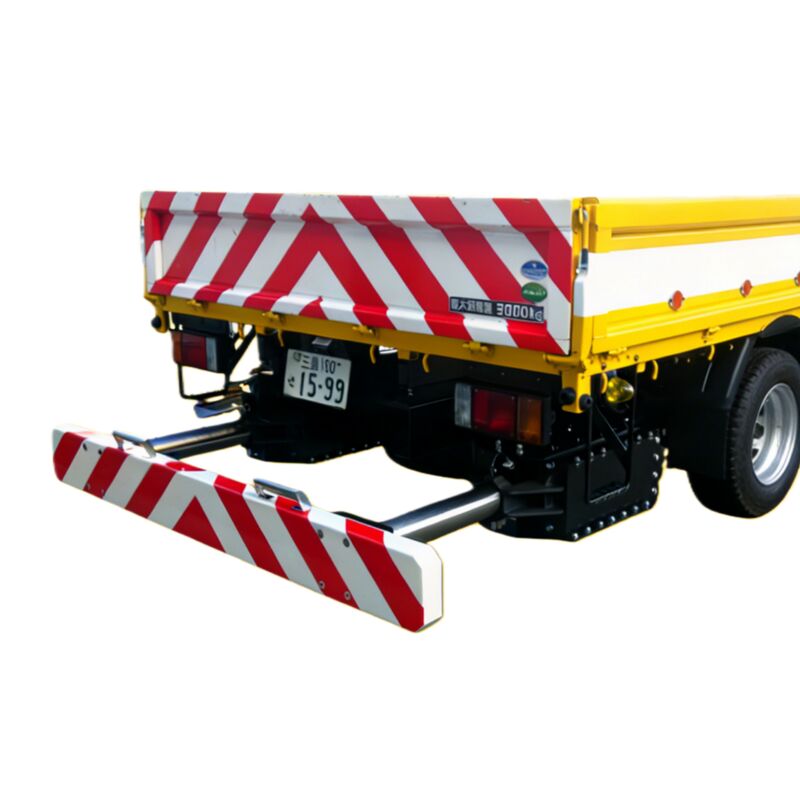

The Truck Mounted Attenuator is installed at the rear of maintenance vehicles to prevent rear-end collisions and protect against vehicles crashing underneath. This safety device functions like an airbag for the rear of the vehicle, absorbing impact energy during collision scenarios that occur during road maintenance, temporary parking, construction operations, and other situations requiring extended stationary periods.

Constructed from durable channel steel and stainless steel materials, this anti-collision damping device offers robust protection with telescopic functionality for convenient use and space efficiency.

The shock absorber dimensions and installation configuration can be customized according to specific customer requirements and vehicle specifications.

Technical Specifications

Item	Specification
Product Name	"Fixed Guard" TMA
Dimensions	W660mm × L650mm × H1055mm (Customizable according to vehicle size)
Main Material	High-strength aluminum plate, special aluminum profile, reinforced steel beam
Energy Absorption Core	High-performance aluminum alloy energy-absorbing structure
Weight	37KG/unit (Standard configuration: 2 units/set)
Applicable Vehicles	Road maintenance vehicles, road sweepers, sprinklers, tunnel cleaning vehicles, and other special operation vehicles
Installation Method	Hanging type, convenient and firm
Surface Treatment	Electrostatic spraying, anti-corrosion and wear-resistant
Standard Accessories	High-brightness strobe warning lights
Standard Color	Engineering warning yellow (Color customizable)

Procurement Guide Key Points

Procurement Key Points	Core Content
Clarify Adaptation Requirements	Confirm operation vehicle type (maintenance vehicle/road sweeper, etc.) and model, provide vehicle rear dimension; specify operation scenario (daily maintenance/tunnel cleaning, etc.)
Confirm Configuration & Customization	Basic configuration: 2 units per set (37KG/unit), including strobe light, engineering yellow; Customization: provide dimension data, specify requirements for color, logo, interface, etc.
Verify Safety Certification	Request Japanese road safety test report, international standard certification, and national patent certificate for core structure
Evaluate Cost & After-sales Service	Cost: Comprehensively consider purchase price, service life, and repair cost; After-sales: Confirm services like installation guidance, maintenance advice, and post-collision repair support
Choose Formal Procurement Channel	Procure through RMHs official/authorized distributors; request samples or on-site inspection of products if necessary

Customization Services

We offer flexible customization solutions to meet your specific operational requirements:

Dimension customization: Adapt to the size of different operation vehicles
Color customization: Match corporate image or special scene requirements
Interface customization: Perfectly fit the rear structure of the vehicle
Warning sign customization: Add corporate logos or special warning information

Product Q&A

Q1: Is the "Fixed Guard" compatible with my non-standard operation vehicle?

Absolutely. The standard dimension is W660mm × L650mm × H1055mm, and we offer full dimension customization. You only need to provide the rear structure size and model of your non-standard vehicle, and we can tailor a perfectly fitting solution.

Q2: Do I need professional skills to install the buffer?

No professional skills are required. The product adopts a hanging hook design—you just need to align the hooks with the rear mounting points of the vehicle and hang it firmly. The whole process takes 5-10 minutes for one set (2 units) and can be completed by a single ordinary worker.

Q3: How effective is the energy absorption? Can it protect against high-speed collisions?

The patented honeycomb energy-absorbing structure is designed for the common collision scenarios of operation vehicles (30-60km/h). For collisions below 40km/h, it can absorb over 80% of the impact energy to avoid major damage; for 40-60km/h collisions, it can significantly reduce the impact force, minimizing personnel injury and equipment loss. It has passed Japanese road safety tests for such scenarios.

Q4: How does the product's energy absorption mechanism work?

The product employs a specially designed aluminum profile structure that has been patented (Patent Number: ZL 2006 1 0057817.8). It uses scientifically engineered collapse deformation to absorb and distribute impact energy, and has been verified through overseas safety tests.

Q5: Can the size and specifications be customized?

Yes, we offer comprehensive customization services. The size and specifications can be tailored to customer requirements. We also support processing based on provided drawings to meet the needs of different construction vehicles and operation scenarios.
