Guidance Cushion Impact Attenuator Pile For Highways Tunnel Entrance

Guidance Cushion Impact Attenuator Pile For Highways Tunnel Entrance

Highways Tunnel Entrance Impact Attenuator

Guidance Cushion Impact Attenuator Pile

Welding Impact Attenuator Pile

Brand Name:

RMHs

Certification:

Iso9001

Model Number:

8 Guard

Contact Us

Request A Quote
Product Details
Material:
Aluminum
Size:
Customized
Model:
HSK-100/HSK-80/HSK-60
Color:
Orange
Area Of Application:
Highways, Bifurcations, Tunnel Entrances Etc.
Product Process:
Welding
Weight:
Depends On The Specific Weight
Reflective:
High Intensity Reflective Film
Payment & Shipping Terms
Packaging Details
wooden box 72pcs 40-inch containers
Delivery Time
30
Payment Terms
T/T
Supply Ability
100 PCSper1 month
Product Description

Guidance Cushion HSK-100 Highways Tunnel Entrance Impact Attenuator Pile



The guidance cushion is a facility to stop the vehicle safely by absorbing the energy of the collision and to make the vehicle change its direction of travel to avoid serious injury to the occupants, its main function is to reduce the severity of the accident, on the other hand, it also plays a warning and guidance role through its surface colour and graphic symbols. They are commonly used at highways, bifurcations, tunnel entrances etc.

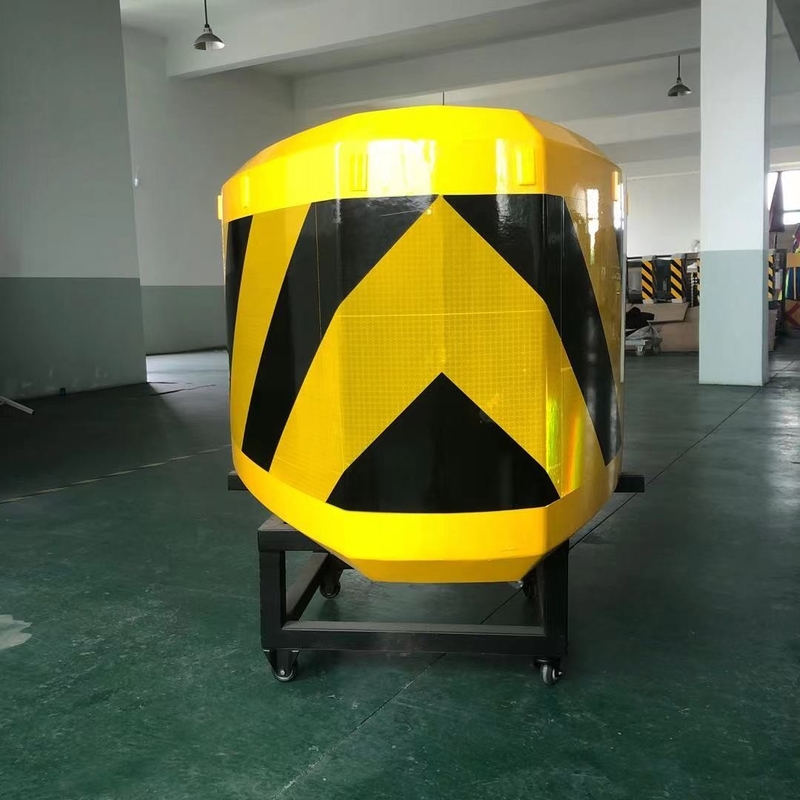

Guidance Cushion Impact Attenuator Pile For Highways Tunnel Entrance 0



Product specification

Model HSK-100
Dimensions (W) 1012mm
Dimensions of above-ground part (H) 880mm
Dimensions of under-ground part (H) 344mm
Dimensions of above-ground part (L) 1577mm
Dimensions of under-ground part (L) 2800mm
Foundation size 1700*3500mm
Foundation depth 650mm
Foundation weight 380kg



The specifications are for reference only, our company is responsible for the whole process from design to manufacture, so we can adjust the installation method according to the actual road conditions.

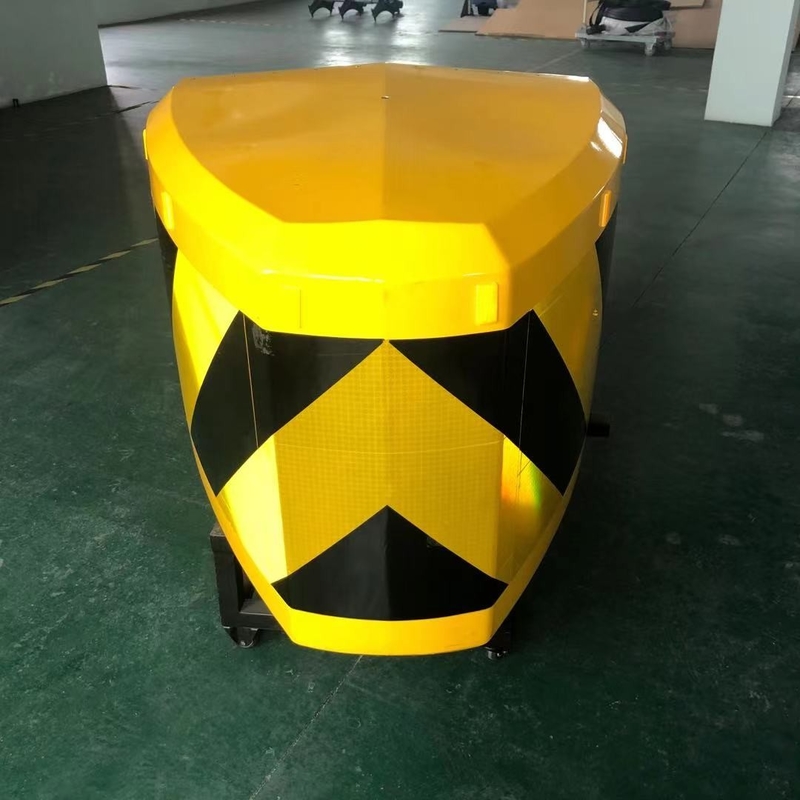

Guidance Cushion Impact Attenuator Pile For Highways Tunnel Entrance 1





Characteristics
This product is a shock absorber that utilizes the ability of metal to absorb collision energy through deformation.
The guardrail bracket installation type / high fence installation type is composed of impact absorption part and installation part, and the buried type of foundation part is composed of impact absorption part and buried part.
The device can replace the shock absorbing parts after the impact deformation, so as to quickly respond to the recovery work after the accident.
The absorption part is made of aluminum alloy, it is difficult to cause secondary disasters, such as fire or scattering of impactors.
The size and shape can be customized according to your requirements.

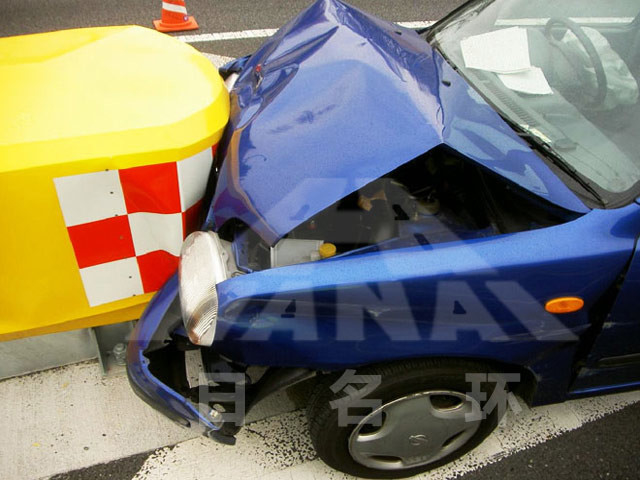

Guidance Cushion Impact Attenuator Pile For Highways Tunnel Entrance 2



As shown in the figure, the buffer material is a honeycomb structure composed of 8-shaped aluminum materials, and the damaged parts can be replaced individually, which can reduce the adjustment time of the accident location.
