Durable Mobile Vehicle Barrier Providing Protection and Flexible Installation Options for Traffic and Crowd Control

Durable Mobile Vehicle Barrier Providing Protection and Flexible Installation Options for Traffic and Crowd Control

200mm height Mobile Vehicle Barrier

detachable aluminum security wedge barriers

200mm height security wedge barriers

Place of Origin:

CHINA

Brand Name:

RMHs

Model Number:

Mini tomarukun

Contact Us

Request A Quote
Product Details
Product Process:
Electrostatic Spraying
Unfold Size:
L1040*W664*H894
Folding Size:
L1100*W664*H200
Structure:
Wheeled
Color:
Customizable
Material:
Aluminum+ Rubber Sheet
Weight:
25 Kg
Operating Dimensions:
W830 × L860 × H1080 Mm
Folded Dimensions:
W830 × L1090 × H365 Mm
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
USD 12,964/unit
Packaging Details
Carton packing 208pcs 40-inch containers
Delivery Time
30
Payment Terms
EXW
Supply Ability
300 units per month
Product Description
Durable Mobile Vehicle Barrier Providing Protection and Flexible Installation Options for Traffic and Crowd Control

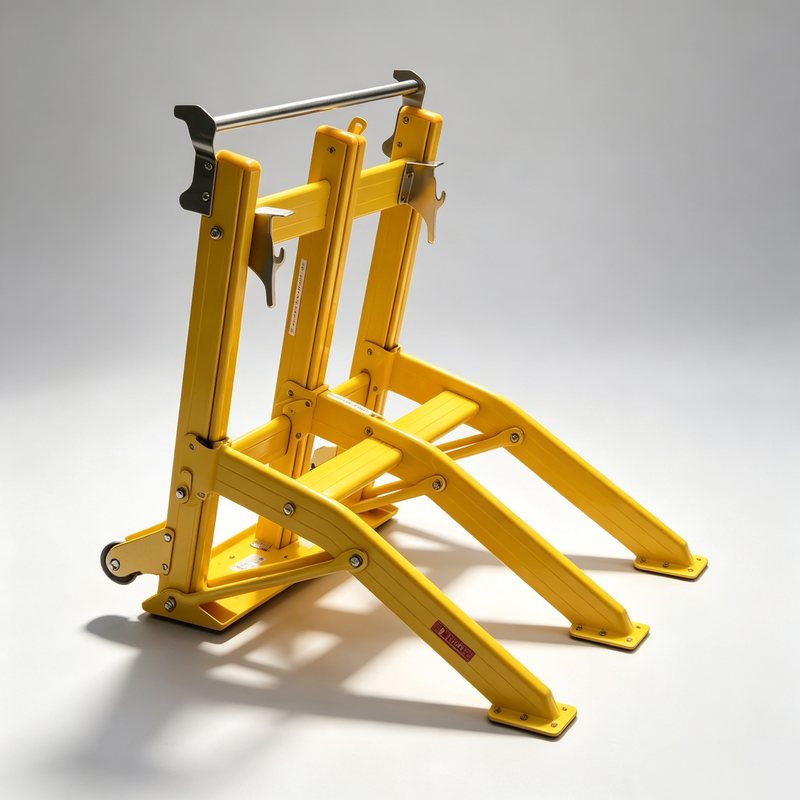

Tomarukun is a lightweight (25kg), foldable, wheeled mobile vehicle interception device designed for low-speed scenarios such as construction zones, combining both warning and braking functions.
Tomarukun security wedge barrier product image
Product Specifications
Item Specification
Product Name Tomarukun Stopping Device
Brand RMHs
Weight 25 kg
Material High-strength aluminum alloy, wear-resistant rubber
Surface Finish Outdoor-grade electrostatic spraying (rust-proof and weather-resistant)
Color Engineering Yellow / Orange-Yellow
Operating Dimensions W830 × L860 × H1080 mm
Folded Dimensions W830 × L1090 × H365 mm
Structure Foldable + wheels at the bottom
Optional Accessories LED light guide plate / LED arrow indicator board
Tomarukun product specifications diagram
Product Highlights
Lightweight & Flexible - One Person Can Handle It
Weighing only 25kg, combined with universal wheels and foldable design, everything from deployment to storage can be easily completed by a single person.
Foldable Storage - Saves Space and Money
Height reduces from 1080mm to 365mm when folded, greatly saving transportation and warehousing space, and reducing logistics costs.
Durable & Weather-Resistant - Not Afraid of Rain or Sun
Outdoor-grade electrostatic spraying provides rust and corrosion resistance, maintaining like-new condition even under harsh weather.
Day & Night Protection - Works Around the Clock
Optional LED indicator board ensures clear visibility at night and in low-visibility environments.
Eco-Friendly Materials - Green Construction
The aluminum alloy body is recyclable, aligning with sustainable development concepts.
Tomarukun product highlight image 1 Tomarukun product highlight image 2
Tomarukun Advantage Comparison
Comparison with Traditional Barricades/Concrete Barriers
Comparison Item Tomarukun Traditional Barricades (Plastic/Rubber Cones) Concrete Barriers
Warning Function ✅ High-visibility engineering yellow + optional LED for nighttime warning ✅ Reflective strips, average nighttime performance ❌ No active warning
Physical Interception ✅ Controlled braking, stops at 8.7m from 60km/h ❌ No interception function, collapses upon impact ✅ Rigid interception
Weight ✅ 25kg, easy for one person to push ✅ Lightweight ❌ Hundreds of kilograms, requires mechanical handling
Mobility ✅ Bottom wheels, push and go ✅ Lightweight and portable ❌ Fixed placement, immovable
Foldable Storage ✅ Height reduces from 1080mm to 365mm ❌ Non-foldable, takes up space ❌ Non-foldable
Transportation Cost ✅ Saves space when folded, low cost ❌ Bulky, higher transportation cost ❌ Heavy and large, extremely high transportation cost
Deployment Speed ✅ Single person, completed in minutes ✅ Single person, completed in minutes ❌ Requires mechanical lifting, takes hours
Weather Resistance ✅ Outdoor electrostatic spraying, rust-proof and UV-resistant ❌ Plastic prone to aging and cracking ✅ Good weather resistance
Eco-Friendliness ✅ Aluminum alloy, recyclable ❌ Plastic, difficult to degrade ✅ Recyclable but energy-intensive
Applicable Scenarios Construction/maintenance/temporary work zones, multiple scenarios Warning only, no protection Permanent or semi-permanent isolation
Advantage Summary
Dimension Tomarukun's Advantages
Safety Warning + Interception, dual protection
Efficiency Single person deploys in 1 minute - no need to wait for cranes or helpers
Cost Foldable for shipping savings, compact storage saves warehouse space, aluminum alloy requires no maintenance
Flexibility Can be relocated anytime - just push and go, unlike immovable concrete barriers
Tomarukun advantage comparison image
Braking Performance
Speed Stopping Distance (Dry Asphalt Road)
40km/h Approx. 3.0m
60km/h Approx. 8.7m
Test Vehicle: 2000cc-class sedan / Brakes applied after collision
Tomarukun braking performance diagram

Applicable Scenarios
  • Municipal road construction isolation
  • Temporary work zone warning and protection
  • Traffic flow guidance
  • Other low-speed areas requiring temporary separation
Tomarukun application scenario 1 Tomarukun application scenario 2
Instructions for Use
  1. Push to the perimeter of the work area and adjust direction as needed
  2. Release the folding lock buckle and ensure the bottom rubber pad contacts the ground
  3. Ready for use upon placement; optional LED board can be installed for enhanced warning
  4. After use, fold up the support arm, fasten the lock buckle, and push to storage location
Tomarukun usage instructions diagram
Product Q&A
Q1: What is this product?
A: Tomarukun Mini Stopping Device, designed for warning and vehicle interception at construction sites.
Q2: Where is it mainly used?
A: Low-speed scenarios such as municipal road construction, temporary work zones, traffic flow guidance, etc.
Q3: How heavy is it? Is it easy to move?
A: 25kg. Equipped with wheels at the bottom and foldable design - one person can easily push and move it.
Q4: How does it stop the vehicle?
A: Upon vehicle impact, the device lifts the front wheels through lever principle, redirecting kinetic energy to the ground, combined with friction braking via the bottom rubber pad.
Q5: What is the stopping distance?
A: On dry asphalt roads, approximately 8.7 meters at 60km/h.
Q6: How to use it?
A: Push to site -> release the folding lock buckle -> rubber pad contacts ground -> ready for use. After use, fold up the support arm, fasten the lock buckle, and push it away.
Q7: Can it be used at night?
A: Yes. It features high-visibility yellow color and can be optionally equipped with an LED indicator board for enhanced nighttime warning.
Q8: Can it withstand sun and rain?
A: Yes. The surface uses outdoor-grade electrostatic spraying, which is rust-proof and corrosion-resistant.
Q9: Does it save space when folded?
A: Yes. Height reduces from 1080mm to 365mm, making transportation and storage more convenient.
Q10: Is it environmentally friendly?
A: Yes. Made of aluminum alloy, which is recyclable.
Q11: What are the advantages over traditional traffic cones?
A: Cones provide warning only but cannot intercept. Tomarukun offers both warning and physical braking - stopping distance of only 8.7m at 60km/h. After use, it folds and can be pushed away, taking up little space.
Q12: What are the advantages over concrete barriers?
A: Concrete barriers can intercept but weigh hundreds of kilograms and require cranes for transport. Tomarukun weighs only 25kg - one person can push and deploy it in just 1 minute.
