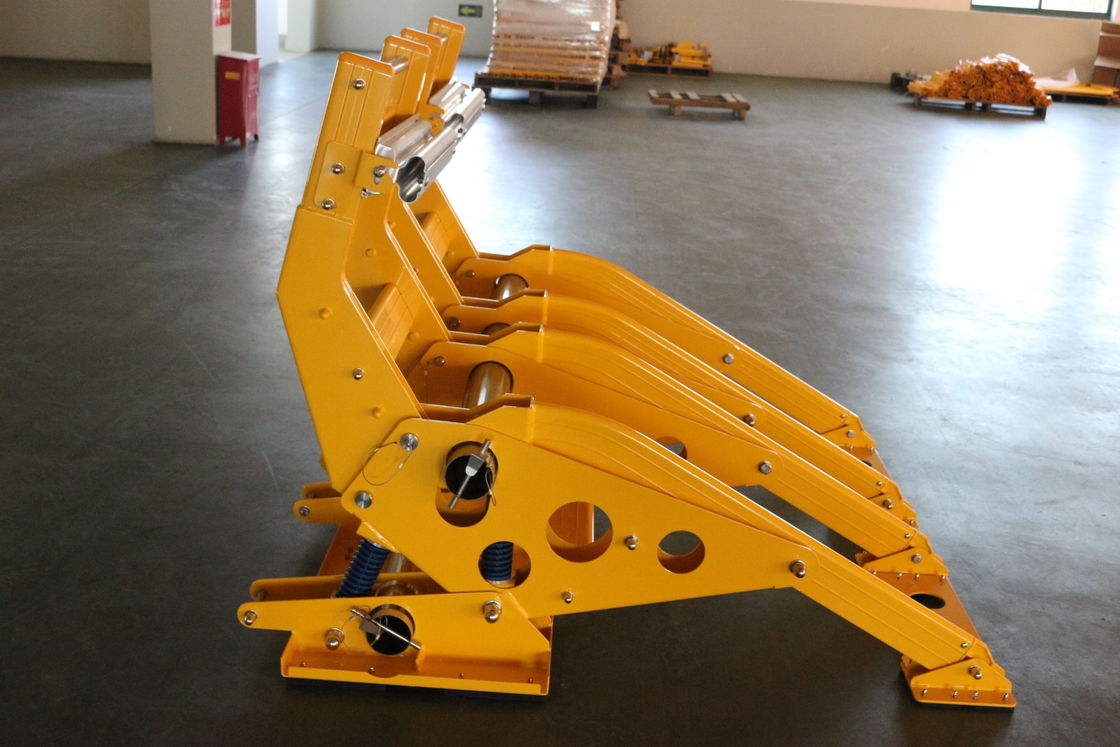

Electrostatic Spraying 132kg Vehicle Security Barriers
Mobile electrostatic spraying aluminum frictional force vehicle security barriers are ideal for local authority use, street works, or high-speed road applications. This mobile vehicle barrier system provides comprehensive protection for workers, drivers, and motor vehicles by absorbing collision energy. The design prevents impacting vehicles from under-riding trucks, which can cause fatal damages.
Product Specifications
| Product Name |
Tomaruzo |
| Material |
Aluminum |
| Size |
L1800*W800*H1200mm |
| Weight |
132kg |
| Color |
Yellow/Orange |
| Placement |
Place behind the construction section |
| Structure |
Detachable |
| Product Process |
Bending + welding |
| Surface Treatment Process |
Electrostatic spraying |
Core Product Advantages
1. Truly Stops Large Vehicles
Tested by the Japan Automobile Research Institute, it shortens the braking distance of a 10-ton truck traveling at 80km/h by nearly 5 meters—forcibly stopping the vehicle with reliable performance.
2. Energy-Absorbing, Not Harmful
The patented aluminum alloy absorbs impact energy through deformation, cushioning the crash rather than creating hard impacts, reducing harm to vehicle occupants.
3. Fire-Resistant
The aluminum material does not produce sparks upon impact, effectively reducing the risk of secondary fires for enhanced safety.
4. Easy to Deploy
Modular design allows disassembly into 8 parts; two people can complete on-site assembly in just 10 minutes—no heavy machinery required.
5. Flexible to Move
Equipped with wheels at the base, it can be pushed by one person and placed anywhere without needing a dedicated truck for transport.
6. Highly Visible Day and Night
High-visibility engineering yellow color is rust-proof and weather-resistant. An optional LED arrow board can be added for effective warning, day or night.
7. Works in All Scenarios
Suitable for highway maintenance, municipal road construction, bridge and tunnel operations, emergency rescue sites, and temporary road closures.
8. Guaranteed Quality
Manufactured by a source factory under strict quality control. The core material is patented with export-grade quality you can trust.
Product Testing
The product has undergone a crash test at the Japan Automobile Research Institute. A 10-ton truck crashed at a speed of 80KM/H, and the braking distance was shortened by nearly 5 meters. Tests show that the device can effectively shorten the accident distance. Without using our products, experiments show that the braking distance is 47.4 meters.
Stopping Principle
When an errant vehicle impacts the device, it achieves rapid and safe deceleration through the following three steps:
1. Lift the Front Wheels (Leverage Principle)
The device's specially designed sloping surface inserts itself under the vehicle upon impact, lifting the front wheels like a crowbar. This lifts the vehicle off the ground, causing it to lose its original control and traction.
2. Absorb Energy (Material Deformation)
The core patented aluminum alloy material undergoes controlled compression and deformation, absorbing the majority of the impact kinetic energy, much like a sponge.
3. Frictional Braking (Kinetic Energy Transfer)
The weight of the lifted vehicle presses down onto the device. This creates immense friction between the device's rubber base plate and the road surface, forcing the vehicle to decelerate rapidly until it comes to a complete stop.
It can be equipped with an LED arrow board to further enhance advanced warnings to drivers.
The exclusive honeycomb aluminum material provides superior energy absorption.
Product Knowledge Q&A
Q: What is this product used for?
A: It is placed behind the work zone. If a vehicle loses control and enters the area, it forcibly stops the vehicle to protect workers ahead.
Q: Can it really stop a large truck?
A: Yes. Tested with a 10-ton truck at 80km/h, it shortens the braking distance by nearly 5 meters, forcing the vehicle to stop.
Q: How is it different from ordinary water-filled barriers or traffic cones?
A: Water-filled barriers only stop small cars; large vehicles can crash right through. This is a professional energy-absorbing device that can stop large vehicles.
Q: Will it catch fire upon impact?
A: No. The core material is aluminum alloy, which does not produce sparks during impact, reducing the risk of secondary fires.
Q: It looks heavy. Is it easy to transport?
A: Yes. It can be disassembled into 8 parts, and two people can assemble it on site. It also has wheels at the base, so you can push it wherever needed.
Q: Does it require machinery for installation?
A: No. It features a modular design that can be assembled manually in about 10 minutes.
Q: Is it visible at night?
A: Yes. It has a high-visibility engineering yellow color, and an LED arrow board can be added for excellent nighttime warning effectiveness.
Q: Where is it mainly used?
A: It is used for highway maintenance, municipal road construction, bridge and tunnel operations, emergency rescue sites, and temporary road closures.
Q: Is the quality guaranteed?
A: Yes. It is manufactured by a source factory under strict quality control. The core material is patented with export-grade quality.
