Foldable Lightweight Vehicle Interceptor with One-Person Deployment for Construction Safety Mobile Barrier

Foldable Lightweight Vehicle Interceptor with One-Person Deployment for Construction Safety Mobile Barrier

Parking Interception Mobile Vehicle Barrier

Folding Mobile Vehicle Barrier

Aluminum Profiles Mobile Vehicle Barrier

Place of Origin:

CHINA

Brand Name:

RMHs

Model Number:

Parking blocker-JY

Contact Us

Request A Quote
Product Details
Weight:
25kg
Main Materials:
High-strength Aluminum Alloy, Wear-resistant Rubber
Operating Dimensions:
W830 × L860 × H1080mm
Folded Dimensions:
W830 × L1090 × H365mm
Stopping Distance:
8.7m At 60km/h
Structural Features:
Foldable Design + Bottom Wheels
Surface Finish:
Outdoor-grade Electrostatic Spraying
Color:
Engineering Yellow / Orange-Yellow
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
USD 12,964/unit
Packaging Details
Carton packing 208pcs 40-inch containers
Delivery Time
30
Payment Terms
L/C,T/T
Supply Ability
300 units per month
Product Description
Foldable Vehicle Interceptor One-Person Deployment Dual Protection Lightweight Mobile Barrier for Construction Safety

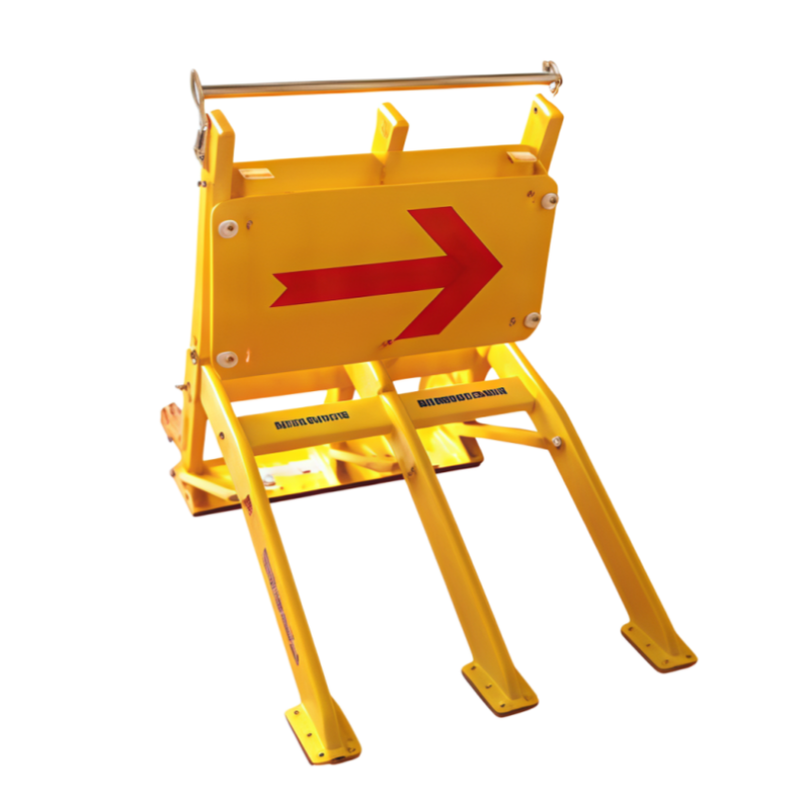

Tomarukun is a lightweight, foldable, wheeled mobile vehicle interception device designed for low-speed scenarios such as municipal road construction and temporary work zones. It combines high-visibility warning with physical braking in one unit - a prominent safety reminder in normal times, and a reliable braking barrier when it matters most.
Tomarukun foldable vehicle interceptor in use at construction site
Specifications
Item Specification
Product Name Tomarukun
Weight 25kg
Main Materials High-strength aluminum alloy, wear-resistant rubber
Surface Finish Outdoor-grade electrostatic spraying (rust-proof and weather-resistant)
Color Engineering Yellow / Orange-Yellow
Operating Dimensions W830 * L860 * H1080mm
Folded Dimensions W830 * L1090 * H365mm
Structural Features Foldable design + bottom wheels
Manufacturing Processes Welding, bending
Optional Accessories LED light guide plate / LED arrow indicator board
Tomarukun specifications and close-up details
Tomarukun - 8 Key Advantages
1. Warning + Interception, Dual Protection
High-visibility engineering yellow appearance alerts drivers to ongoing construction ahead, while also providing physical braking when a vehicle improperly enters. Two layers of defense work together to offer extra safety protection for the work zone.
2. Efficient Braking - Stops When It Matters
Stopping distance of only 8.7 meters at 60km/h, bringing the vehicle to a safe stop within an extremely short distance and effectively preventing it from rushing into the work zone and injuring personnel.
3. Lightweight Design - One Person Can Handle It
Weighs only 25kg with bottom wheels - all operations from deployment to storage can be completed by a single person without additional manpower or mechanical equipment.
4. Space-Saving Fold - Cost-Effective
Height reduces from 1080mm to 365mm when folded, significantly reducing volume, occupying less transport and storage space, and noticeably lowering logistics costs.
5. Flexible Mobility - Push and Go
Equipped with bottom wheels for easy on-site relocation - just push and move, no special tools or equipment required. Goes wherever it's needed.
6. Tough & Durable - Withstands All Weather
Outdoor-grade electrostatic spraying provides rust, corrosion, and UV resistance, maintaining like-new condition even under harsh outdoor weather.
7. Nighttime Usability - 24/7 Protection
High-visibility engineering yellow body with optional LED indicator board ensures excellent warning effectiveness at night and in low-visibility environments.
8. Eco-Friendly - Recyclable Material
Main body made of aluminum alloy, which is recyclable, non-flammable, and reduces secondary risks during collisions - aligns with green construction and sustainable development concepts.
Tomarukun in various deployment scenarios Tomarukun foldable design demonstration Tomarukun mobility features
Braking Performance
Set Speed Stopping Distance (Dry Asphalt Road)
40km/h Approx. 3.0m
60km/h Approx. 8.7m
Test conditions: 2000cc-class sedan, brakes applied after collision. Effects may vary depending on road surface and accident conditions.
Tomarukun braking performance chart and data
Applicable Scenarios
  • Municipal road construction isolation
  • Temporary work zone warning and protection
  • Traffic flow guidance
  • Other low-speed areas requiring temporary isolation
Tomarukun in municipal road construction application Tomarukun in temporary work zone setting Tomarukun used for traffic guidance
Working Principle
When a vehicle improperly enters the restricted area and collides with the device, the system rapidly lifts the front wheels through lever principle, efficiently redirecting forward kinetic energy to the ground. The remaining energy is transferred to the specially designed wear-resistant rubber pad at the bottom, achieving smooth braking through high-strength ground friction. The entire braking process is fast and controlled, effectively preventing the vehicle from rushing into the work zone.
Tomarukun working principle diagram
Instructions for Use
  1. Push to the perimeter of the work area and adjust direction as needed
  2. Release the folding lock buckle and ensure the bottom rubber pad fully contacts the ground
  3. Ready for use upon placement; optional LED board can be installed for enhanced warning
  4. After use, fold up the support arm, fasten the lock buckle, and push to storage location
Recommended Placement Distance: Approx. 20 meters behind the safety area
Tomarukun placement and usage instructions
Tomarukun Product Q&A
Q: What is Tomarukun?
A: A lightweight vehicle interception device designed for safety warning and emergency braking at construction sites.
Q: Where is it used?
A: Low-speed areas such as municipal road construction, road maintenance, temporary work zones, and traffic guidance.
Q: Can one person operate it?
A: Yes. Weighing only 25kg with wheels and a foldable design, one person can push it out and fold it away.
Q: How does it brake?
A: When a vehicle hits the device, it lifts the front wheels and redirects the impact force to the ground, while the bottom rubber pad grips the road surface with strong friction to bring the vehicle to a stop.
Q: What is the braking performance?
A: At 60km/h, the stopping distance from impact to full stop is only 8.7 meters.
Q: How is it set up and used?
A: Push to the location -> unlock the folding buckle -> ensure the rubber pad is flat against the ground -> ready to go. When done, fold up the support arm, fasten the lock buckle, and push it back to storage.
Q: Can it be used at night?
A: Yes. Its bright yellow color is highly visible, and an optional LED light panel can be added for even clearer nighttime visibility.
Q: Can it handle rain and sun exposure?
A: Yes. The surface is treated with rust-proof coating, so it holds up well against outdoor weather.
Q: How much space does it save when folded?
A: The height drops from over 1 meter to just over 30 centimeters when folded, saving significant space in transport and storage.
Q: Is it environmentally friendly?
A: Yes. The aluminum alloy body is recyclable.
Q: How does it compare to traffic cones?
A: Traffic cones only warn and tip over upon impact - they don't stop vehicles. Tomarukun both warns and physically stops vehicles, and folds away for easy storage.
Q: How does it compare to concrete barriers?
A: Concrete barriers are sturdy but weigh hundreds of kilograms and require a crane to move. Tomarukun weighs only 25kg - one person can push and set it up in just 1 minute.
