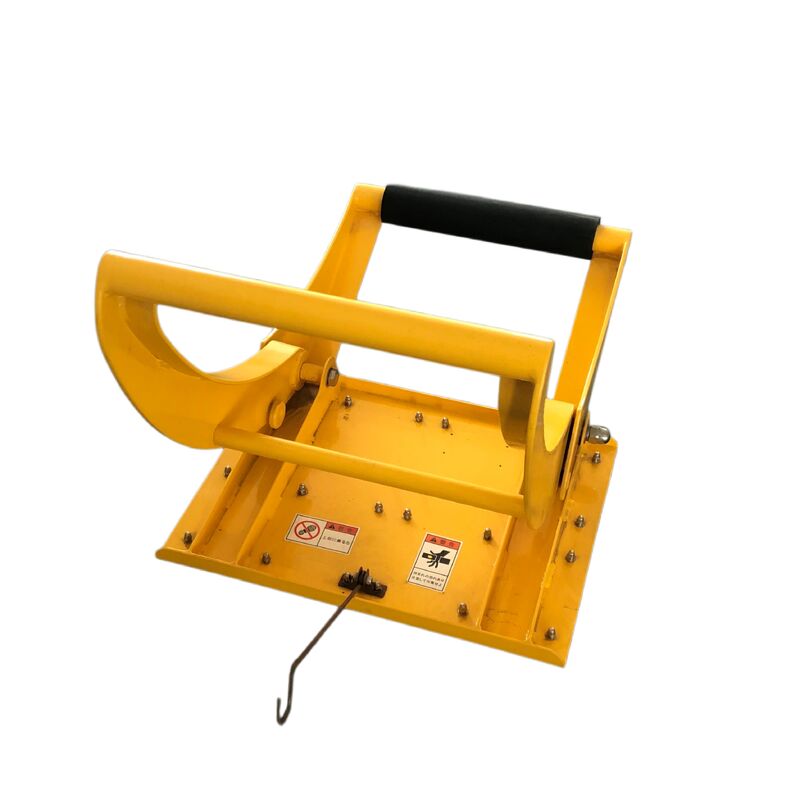

13.4kg Foldable Mobile Vehicle Barrier with Electrostatic Spray Coating for Urban Road Safety

13.4kg Foldable Mobile Vehicle Barrier with Electrostatic Spray Coating for Urban Road Safety

13.4kg Mobile Vehicle Barrier

Foldable Vehicle Barrier

Electrostatic Spray Coating Portable Vehicle Barrier

Place of Origin:

CHINA

Brand Name:

RMHs

Certification:

ISO 9001

Model Number:

STOPPY

Contact Us

Request A Quote
Product Details
Weight:
13.4kg
Material:
Aluminum Rubber Sheet
Unfolded Size:
1400*530*230mm
Surface Treatment:
Electrostatic Spraying
Color:
Traffic Yellow
Structure:
Foldable
Stopping Principle:
Lever Principle + Rubber Base Friction Braking
Manufacturing Process:
Bending, Welding
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
USD 2,100/unit
Packaging Details
Packed in cartons, 400 units per 40-foot container
Delivery Time
30
Payment Terms
T/T,L/C
Supply Ability
500 units per month
Product Description
Mobile Vehicle Barrier with Foldable Aluminum Design
The HITOMARUKUN is a lightweight, movable anti-collision barrier designed for low-speed urban roads and municipal isolation zones. Featuring a foldable aluminum profile structure weighing only 13.4kg, it is equipped with four non-slip rubber pads that transfer impact force to the ground via the lever principle, effectively stopping vehicles through friction. The electrostatic spray coating ensures outstanding weather resistance. It can be paired with a grid cold-light film arrow sign for quick installation and prominent warning, effectively safeguarding construction and work zone personnel.
HITOMARUKUN mobile vehicle barrier in use
Product Specifications
Item Specification
Brand RMHs
Model HITOMARUKUN
Material Aluminum profile + Rubber
Structure Foldable
Weight 13.4 kg
Dimensions (Unfolded) 1400 × 530 × 230 mm
Color Yellow / Orange-yellow
Surface Finish Electrostatic spraying
Manufacturing Process Bending, welding
Application Residential construction sites, municipal road isolation & warning
Accessory Grid cold-light film arrow sign (optional)
Stopping Principle Lever principle + rubber base friction braking
Key Features Lightweight & portable, foldable storage, weather-resistant & rust-proof, safe & eco-friendly
HITOMARUKUN barrier specifications diagram HITOMARUKUN barrier dimensional details
Key Advantages
  • Lightweight & Portable: Weighing only 13.4kg, it can be easily carried and rapidly deployed by a single operator without any auxiliary tools, significantly reducing labor costs.
  • Foldable & Space-Saving: The foldable design allows for stacked storage or placement in a vehicle trunk when not in use, effectively saving warehouse and transport space.
  • Durable & Weather-Resistant: Made of high-quality aluminum with electrostatic spray coating, it resists fading and rusting even under prolonged outdoor exposure in various harsh weather conditions.
  • Friction-Based Braking: Equipped with four specially designed non-slip rubber pads, the device transfers impact force to the ground via the lever principle, effectively stopping vehicles through friction with reliable braking performance.
  • Safe & Eco-Friendly: The aluminum material is non-flammable and produces no hazardous debris in case of fire, preventing secondary disasters. The material is also fully recyclable, making it environmentally friendly.
HITOMARUKUN barrier advantages demonstration HITOMARUKUN barrier portability features
Application Scenarios
  • Temporary Municipal Road Isolation: Used for small-scale roadworks, pipeline repairs, landscaping, and similar operations to guide vehicles around work zones and protect personnel.
  • Residential & Campus Construction Sites: Ideal for local repairs or equipment installation within communities, commercial parks, and parking lots, effectively separating work areas from pedestrian and vehicle traffic.
  • Road Maintenance Work Zone Protection: Rapidly deployed around short-term maintenance tasks such as line marking, streetlight repairs, and manhole cover replacements to safeguard crews from passing vehicles.
  • Traffic Control & Diversion: Used for temporary lane closures or traffic rerouting during holiday congestion, at accident scenes, or at temporary checkpoints, working best when paired with an arrow guidance sign.
  • Event & Race Temporary Barriers: Well-suited for course separation and crowd management at marathons, cycling races, outdoor festivals, and similar events.
  • Emergency Rapid Response: Can be stored in emergency vehicle trunks for instant deployment at unexpected traffic accident sites, enabling quick perimeter setup within the critical response window.
HITOMARUKUN barrier application scenarios HITOMARUKUN barrier in various settings
Stopping Principle
When a moving vehicle strikes the device, its front wheels are lifted. Based on the lever principle, the impact force is transferred through the structural frame to the ground, while the four specially designed non-slip rubber pads at the base generate significant friction against the road surface. Through the combined effect of leverage and ground friction, the vehicle is effectively braked and forced to stop within a safe distance, preventing intrusion into the work zone and ensuring the safety of personnel on site.
Principle Breakdown
Step Description
① Impact The vehicle's front wheels strike the device and are lifted upward
② Lever Transmission Impact force is transferred through the aluminum structure to the base
③ Friction Braking Rubber pads at the base generate significant friction against the ground
④ Safe Stop The vehicle is forced to stop within a safe distance, protecting the work zone
HITOMARUKUN barrier stopping principle diagram
Operating Instructions
Operation is very simple, just three steps:
  • ① Unfold - Grip the support bars and pull outward to fully unfold the barrier to its working position.
  • ② Place - Position the unfolded barrier around the perimeter of the area requiring isolation or protection, facing oncoming traffic.
  • ③ Store - After use, grip the support bars and fold the barrier inward, then store it properly in a vehicle trunk or other suitable location.
Tips:
  • Make sure the rubber pads touch the ground firmly.
  • Attach the arrow sign to the handles for extra warning if needed.
  • Use only on low-speed roads. Check the barrier before use.
HITOMARUKUN barrier operation demonstration HITOMARUKUN barrier storage and handling
Frequently Asked Questions
Q1: What are the basic specifications of HITOMARUKUN?
A: Brand RMHs, model HITOMARUKUN. Made of aluminum profiles and rubber with a foldable structure. Unfolded dimensions are 1400×530×230mm, weighing only 13.4kg. Available in yellow and orange-yellow, with electrostatic spray coating finish, manufactured through bending and welding processes in Chinese factories with strict quality control systems.
Q2: What is the main function of the product?
A: Placed around construction or work zones to provide warning and traffic diversion, effectively preventing vehicle intrusion. Upon collision, it forces the vehicle to stop within a safe distance, protecting personnel on site.
Q3: What is the stopping principle?
A: When a vehicle strikes, the front wheels are lifted. The impact force is transferred to the ground via the lever principle, while four non-slip rubber pads generate friction against the road surface, combining to stop the vehicle.
Q4: What are the key advantages?
A: ①Lightweight (13.4kg, one-person carry); ②Foldable (space-saving, fits in trunk); ③Durable (electrostatic coating, rust/fade resistant); ④Friction braking (lever + rubber friction for reliable stop); ⑤Safe & eco-friendly (aluminum is non-flammable, no hazardous debris, recyclable).
Q5: What are the applicable scenarios?
A: ①Temporary municipal road isolation; ②Residential & campus construction; ③Road maintenance protection; ④Traffic control & diversion; ⑤Event & race barriers; ⑥Emergency rapid response.
Q6: How to use it?
A: Three simple steps: ①Unfold - pull support bars outward; ②Place - position around work zone facing oncoming traffic; ③Store - fold inward and keep in trunk.
Q7: How to use the accessory?
A: Attach the grid cold-light film arrow sign by pressing the hook-and-loop fasteners onto the side handles - quick and easy, with prominent warning effect.
Q8: How is product quality ensured?
A: Manufactured in Chinese factories with strict quality control systems. Every step from raw material inspection to bending, welding, and coating follows standardized quality monitoring. Finished products undergo visual inspection, dimensional accuracy, folding durability, and rubber friction testing - ensuring each unit is stable, reliable, and meets export quality standards.
Q9: Is it environmentally friendly?
A: Yes. The aluminum profile is eco-friendly and fully recyclable. It is also non-flammable, producing no hazardous debris in case of fire, preventing secondary disasters.
Q10: Any precautions?
A: ①Ensure rubber pads are in full contact with the ground; ②Designed for low-speed roads only, not for highways; ③Inspect all components before use.
