Portable Vehicle Barricades

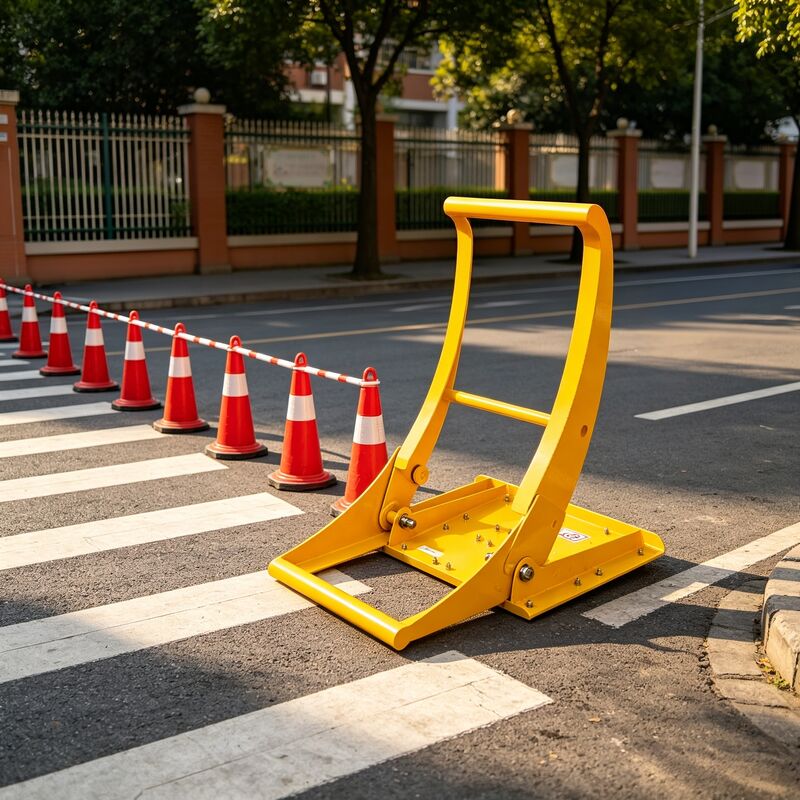

The HITOMARUKUN is a lightweight, movable anti-collision barrier designed to non-lethally stop invading vehicles. It is suitable for urban low-speed road sections and municipal road isolation areas. Weighing 13.4kg, it is the smallest and lightest model in its series. It is foldable and can be carried, unfolded, and stored by one person.
The main body is made of aluminum profile, which is environmentally friendly, recyclable, and non-flammable. The surface features yellow electrostatic spraying, not easy to fade or rust. Four anti-skid rubber pads are installed at the bottom. When a vehicle hits the device, the front wheel is lifted, and the impact force is transmitted to the ground through the lever principle, where the rubber plate rubs against the ground, forcing the vehicle to stop.
It can be equipped with a grid cold light film arrow sign, providing both warning and traffic guidance functions. It is suitable for residential community construction, municipal road isolation, temporary traffic guidance, and more.
Specifications
| Item |
Details |
| Structure |
Foldable |
| Weight |
13.4kg |
| Dimensions |
1400×530×230mm |
| Color |
Yellow / Orange |
| Surface Finish |
Electrostatic spraying |
| Material |
Aluminum profile |
| Process |
Bending, welding |
| Application |
Residential community construction, municipal road isolation and warning |
Product Advantages
- Lightweight and easy to carry, one-person operation: Weighing only 13.4kg with a compact size, it requires no auxiliary tools. One person can carry, unfold, and store it.
- Foldable storage, space-saving: The foldable design allows it to be stored in the trunk or tool room after use, ready for use at any time.
- Weather-resistant coating, suitable for outdoor use: The yellow electrostatic spraying is not easy to fade or rust, withstanding sun and rain, with bright color and high visibility.
- Anti-skid bottom, more stable braking: Four special anti-skid rubber pads enhance friction with the ground, making parking braking more reliable.
- Aluminum material, eco-friendly and flame-retardant: The main body is made of aluminum profile, which is recyclable and non-flammable, preventing secondary disasters caused by flying debris.
- Arrow sign compatible, warning and guidance: Compatible with the grid cold light film arrow sign, attached via Velcro for easy installation and nighttime visibility, providing both warning and traffic guidance.
- Non-lethal interception, protecting personnel: Effectively stops vehicles from entering restricted and working areas, forcing them to stop within a certain distance to ensure the safety of construction site personnel.
Working Principle
When a vehicle hits the device, the front wheel is lifted, shifting the vehicle's center of gravity forward and causing a loss of traction. By the lever principle, the impact force is transmitted to the ground, where the rubber plate at the bottom rubs tightly against the ground, creating strong resistance that forces the vehicle to stop within a short distance.
This process achieves non-lethal interception, effectively stopping vehicles from entering restricted and working areas while minimizing harm to the vehicle and its occupants, and protecting the safety of construction site personnel.
Usage Steps
- Take out: Take the folded barrier from the trunk and carry it to the designated location.
- Unfold: Lay it flat with the rubber pad facing down. Pull both sides outward to fully unfold.
- Position: Place it horizontally in front of the passage, rubber pad on the ground, front facing oncoming vehicles.
- Install arrow sign (optional): Attach the arrow sign with Velcro, arrow pointing in the guidance direction.
- Multiple units (optional): Place side by side and adjust spacing to widen the protection area.
- Storage: After use, remove the arrow sign, fold the barrier by pushing both sides inward, and put it back into the trunk.
Frequently Asked Questions
What is the HITOMARUKUN?
The HITOMARUKUN is a lightweight, movable anti-collision barrier designed to non-lethally stop invading vehicles. It is mainly applicable to urban road sections and municipal road isolation areas where vehicles are traveling at low speeds.
What is the main function of the HITOMARUKUN?
It is placed outside construction areas to provide warning and traffic guidance, while preventing vehicles from accidentally entering the construction area and effectively controlling vehicles from entering restricted and working areas.
What are the weight and dimensions of the HITOMARUKUN?
It weighs 13.4kg and measures 1400×530×230mm. It is the smallest and lightest in its series.
What are the structural features of the HITOMARUKUN?
It is foldable. After unfolding, it stays stable by its own structure and weight, with no locking device required. When folded, it saves space and can be easily placed in the trunk.
What is the main material of the HITOMARUKUN?
The main material is aluminum profile, which is environmentally friendly, recyclable, and non-flammable, preventing secondary disasters caused by flying debris and protecting personnel and buildings.
What are the surface finish and color of the HITOMARUKUN?
The color is yellow/orange, and the surface is treated with electrostatic spraying, which is not easy to fade or rust and is suitable for outdoor weather conditions.
What is the working principle of the HITOMARUKUN?
When a vehicle hits the device, the front wheel is lifted. By the lever principle, the impact force is transmitted to the ground, where the rubber plate at the bottom rubs against the ground, forcing the vehicle to stop.
What special design is at the bottom of the HITOMARUKUN?
Four special anti-skid rubber pads are installed at the bottom to enhance friction with the ground and improve parking braking reliability.
What product can the HITOMARUKUN be used with?
It can be equipped with the grid cold light film arrow sign, attached to the handles on both sides via double-sided Velcro. The operation is simple, providing both warning and traffic guidance functions.
What scenarios is the HITOMARUKUN suitable for?
Residential community construction fencing, municipal road isolation and warning, restricted zones on urban low-speed road sections, safety protection for working areas, and temporary traffic guidance and warning.
What are the product advantages of the HITOMARUKUN?
Lightweight and one-person operable; foldable and space-saving; electrostatic spraying for weather resistance; four anti-skid rubber pads for stable grip; aluminum profile material, eco-friendly and flame-retardant; compatible with arrow sign for warning and guidance; non-lethal interception for safety and reliability.
How do you use and store the HITOMARUKUN?
To use, take it out of the trunk, lay it flat with the rubber pad facing down, pull both sides outward to fully unfold, and place it horizontally in front of the passage with the front facing oncoming vehicles. After use, remove the arrow sign, fold the barrier by pushing both sides inward, and put it back into the trunk for easy access next time.
