Lightweight Foldable Crash Barrier with Electrostatic Spraying for Urban Low-Speed Roads

Lightweight Foldable Crash Barrier with Electrostatic Spraying for Urban Low-Speed Roads

13.4kg Lightweight Portable Vehicle Barricades

Foldable Structure Crash Barrier

Electrostatic Spraying Anti-Collision Barrier

Place of Origin:

China

Brand Name:

RMH

Certification:

ISO 9001

Model Number:

STOPPY

Contact Us

Request A Quote
Product Details
Surface Finish:
Electrostatic Spraying
Measurement:
1400*530*230mm
Weight:
13.4kg
Anti-skid Design:
Four Rubber Pads
Construction:
Foldable
Material:
Aluminum Profile, Rubber
Color:
Yellow / Orange
Process:
Bending, Welding
Dimensions:
1400×530×230mm
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
USD 2,100/unit
Packaging Details
Packed in cartons, 400 units per 40-foot container
Delivery Time
30 days
Payment Terms
L/C,T/T
Supply Ability
500 units per month
Product Description
Portable Vehicle Barricades
Foldable movable anti-collision barriers designed for low speed urban roads and easy one person deployment.
Product Overview
The HITOMARUKUN is a lightweight, movable anti-collision barrier that non-lethally stops invading vehicles. It is suitable for urban low-speed road sections and municipal road isolation areas. Weighing only 13.4kg, it is the smallest and lightest model in its series.
The main body is made of aluminum profile, which is environmentally friendly and flame-retardant. The surface features yellow electrostatic spraying for weather resistance and durability. Four anti-skid rubber pads are installed at the bottom.
When a vehicle hits the device, the front wheel is lifted, and the impact force is transmitted to the ground through the lever principle, where the rubber plate rubs against the ground, forcing the vehicle to stop. It can be equipped with a grid cold light film arrow sign, providing both warning and traffic guidance functions.

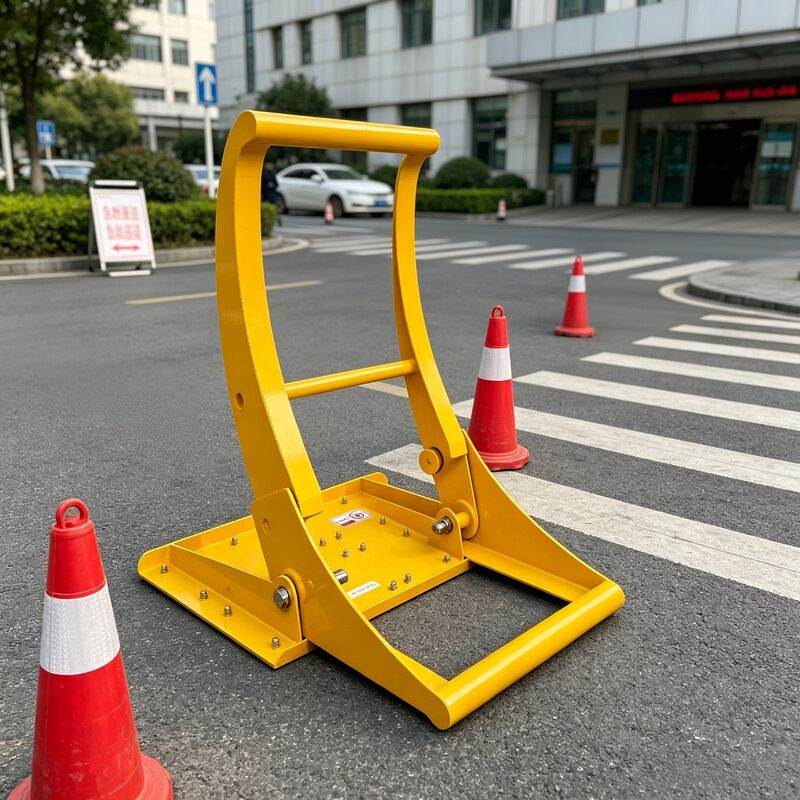

HITOMARUKUN portable vehicle barricade in use
Product Specifications
Item Details
Product Name HITOMARUKUN
Structure Foldable
Weight 13.4kg
Dimensions 1400×530×230mm
Color Yellow / Orange
Surface Finish Electrostatic spraying
Main Material Aluminum profile
Process Bending, welding
Application Residential community construction, municipal road isolation and warning
Compatible Product Safety arrow indicator sign
Function Placed outside construction areas to provide warning and traffic guidance, while preventing vehicles from accidentally entering the construction area
Features Simple structure, foldable, easy to carry, transport, and store
HITOMARUKUN specifications and features
Structural Features
  • Foldable: Bending and welding process. Ready to use after unfolding, no locking needed, stays stable by its own weight. Compact when folded for easy carrying and storage.
  • Aluminum profile main body: Good plasticity for bending and welding, environmentally friendly, recyclable, and non-flammable.
  • Electrostatic spraying surface: Yellow/orange, not easy to fade or rust, suitable for outdoor use.
  • Anti-skid bottom: Four special anti-skid rubber pads for enhanced ground friction.
  • Handles on both sides: Easy to carry, unfold, and fold; also used to fix the arrow sign.
  • Arrow sign compatible: Grid cold light film arrow sign attached via Velcro, easy to install, providing both warning and traffic guidance.
HITOMARUKUN structural features diagram HITOMARUKUN close-up view
Product Advantages
  • Lightweight and portable, one-person operation: Weighing only 13.4kg, it is the smallest and lightest model in its series. One person can carry, unfold, and store it without auxiliary tools.
  • Foldable storage, space-saving: The foldable structure allows it to be stored in the trunk or tool room after use, ready for use at any time without taking up too much space.
  • Electrostatic spraying, weather-resistant and durable: The surface features yellow electrostatic spraying, which is not easy to fade or rust, adapting to outdoor weather conditions with bright color and good visibility.
  • Anti-skid rubber pads, more stable grip: Four special anti-skid rubber pads at the bottom effectively enhance friction with the ground and improve parking braking.
  • Aluminum profile material, environmentally friendly and flame-retardant: The main body is made of aluminum profile, which is environmentally friendly, recyclable, and non-flammable, preventing secondary disasters caused by flying debris and protecting personnel and buildings.
  • Arrow sign, both warning and guidance: Compatible with the grid cold light film arrow sign, attached via Velcro for easy installation and nighttime visibility, providing both warning and traffic guidance.
  • Non-lethal interception, safe and reliable: Effectively stops vehicles from entering restricted and working areas, forcing them to stop within a certain distance to protect the lives of construction site personnel.
  • Wide range of applications: Suitable for residential community construction fencing, municipal road isolation and warning, restricted zones on urban low-speed road sections, safety protection for working areas, and temporary traffic guidance.
HITOMARUKUN in various applications HITOMARUKUN deployment demonstration HITOMARUKUN product advantages illustration
Parking Principle
When a vehicle hits the device, the front wheel is lifted, shifting the vehicle's center of gravity forward and causing a loss of traction. By the lever principle, the impact force is transmitted to the ground, where the rubber plate at the bottom rubs tightly against the ground, creating strong resistance that forces the vehicle to stop within a short distance.
This process achieves non-lethal interception, effectively stopping vehicles from entering restricted and working areas while minimizing harm to the vehicle and its occupants, and protecting the safety of construction site personnel.
HITOMARUKUN parking principle diagram
Application Method
  • Take out: Take the folded barrier from the trunk or tool room. Hold both sides and carry it to the designated location. One person is enough.
  • Unfold: Lay it flat with the rubber pad facing down. Pull both sides outward to fully unfold. No locking needed; it stays stable by its own weight.
  • Position: Place it horizontally in front of the passage to be isolated, rubber pad on the ground, front facing oncoming vehicles. Place at a safe buffer distance outside the construction area.
  • Install arrow sign (optional): Attach the grid cold light film arrow sign to the handles with Velcro, arrow pointing in the traffic guidance direction. Turn on power at night if equipped.
  • Multiple units (optional): Place multiple barriers side by side and adjust spacing to widen the protection area.
HITOMARUKUN application method demonstration HITOMARUKUN deployment steps diagram
Product Knowledge Q & A
Q1: What is the HITOMARUKUN?
A: The HITOMARUKUN is a lightweight, movable anti-collision barrier designed to non-lethally stop invading vehicles. It is mainly applicable to urban road sections and municipal road isolation areas where vehicles are traveling at low speeds.
Q2: What is the main function of the HITOMARUKUN?
A: It is placed outside construction areas to provide warning and traffic guidance, while preventing vehicles from accidentally entering the construction area and effectively controlling vehicles from entering restricted and working areas.
Q3: What are the weight and dimensions of the HITOMARUKUN?
A: It weighs 13.4kg and measures 1400×530×230mm. It is the smallest and lightest in its series.
Q4: What are the structural features of the HITOMARUKUN?
A: It is foldable. After unfolding, it stays stable by its own structure and weight, with no locking device required. When folded, it saves space and can be easily placed in the trunk.
Q5: What is the main material of the HITOMARUKUN?
A: The main material is aluminum profile, which is environmentally friendly, recyclable, and non-flammable, preventing secondary disasters caused by flying debris and protecting personnel and buildings.
Q6: What are the surface finish and color of the HITOMARUKUN?
A: The color is yellow/orange, and the surface is treated with electrostatic spraying, which is not easy to fade or rust and is suitable for outdoor weather conditions.
Q7: What is the working principle of the HITOMARUKUN?
A: When a vehicle hits the device, the front wheel is lifted. By the lever principle, the impact force is transmitted to the ground, where the rubber plate at the bottom rubs against the ground, forcing the vehicle to stop.
Q8: What special design is at the bottom of the HITOMARUKUN?
A: Four special anti-skid rubber pads are installed at the bottom to enhance friction with the ground and improve parking braking reliability.
Q9: What product can the HITOMARUKUN be used with?
A: It can be equipped with the grid cold light film arrow sign, attached to the handles on both sides via double-sided Velcro. The operation is simple, providing both warning and traffic guidance functions.
Q10: What scenarios is the HITOMARUKUN suitable for?
A: Residential community construction fencing, municipal road isolation and warning, restricted zones on urban low-speed road sections, safety protection for working areas, and temporary traffic guidance and warning.
Q11: What are the product advantages of the HITOMARUKUN?
A: Lightweight and one-person operable; foldable and space-saving; electrostatic spraying for weather resistance; four anti-skid rubber pads for stable grip; aluminum profile material, eco-friendly and flame-retardant; compatible with arrow sign for warning and guidance; non-lethal interception for safety and reliability.
Q12: How do you use and store the HITOMARUKUN?
A: To use, take it out of the trunk, lay it flat with the rubber pad facing down, pull both sides outward to fully unfold, and place it horizontally in front of the passage with the front facing oncoming vehicles. After use, remove the arrow sign, fold the barrier by pushing both sides inward, and put it back into the trunk for easy access next time.
HITOMARUKUN storage and transportation
